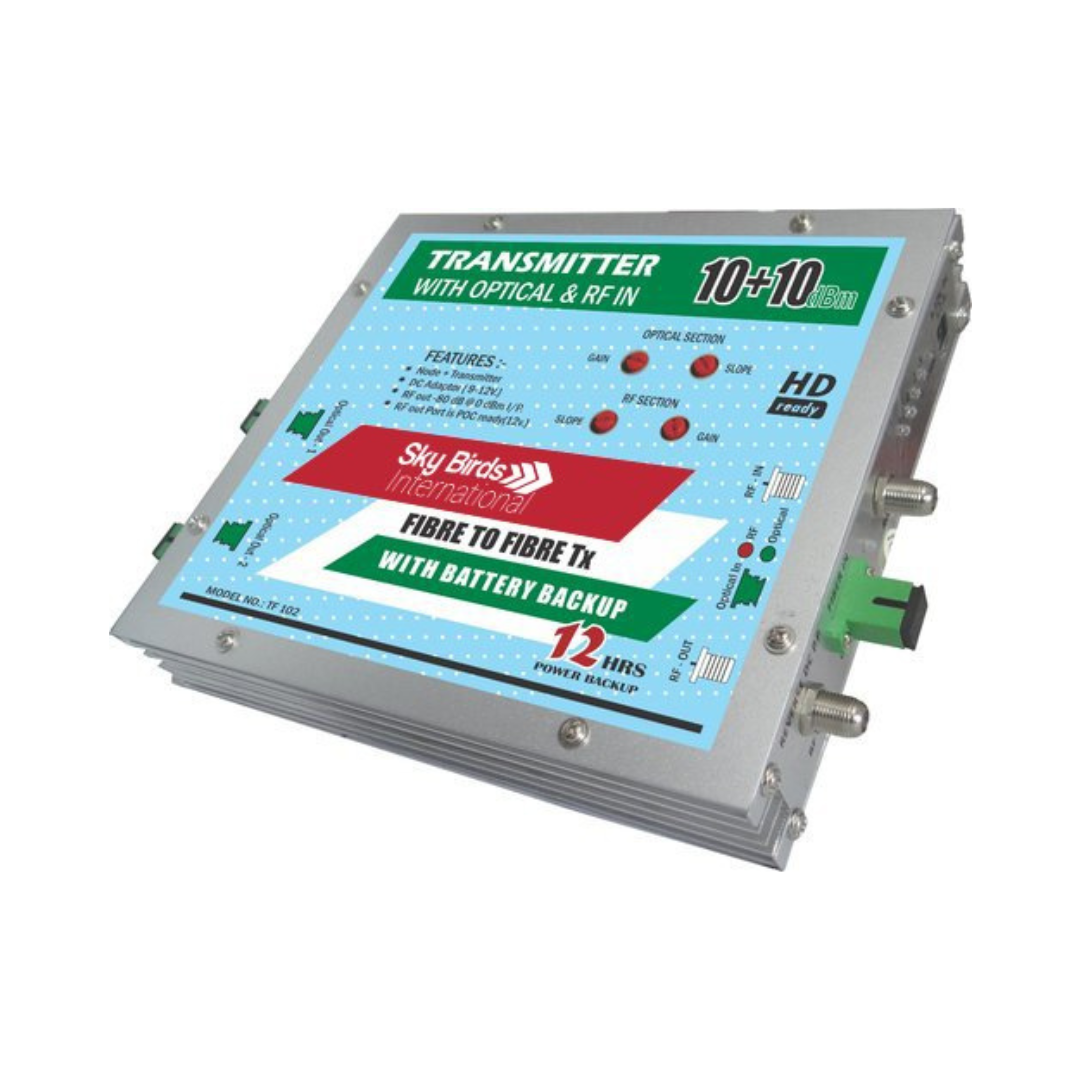

10+10 dBm Transmitter with Optical and RF-IN – Dual Output High-Power Transmission for Advanced Optical Networks
The 10+10 dBm Transmitter with Optical and RF-IN is a high-performance, dual-output optical transmission device designed to meet the demanding needs of modern fiber optic communication networks. Engineered for precision, reliability, and efficiency, this transmitter is ideal for Cable TV (CATV) systems, fiber-to-the-home (FTTH) deployments, metropolitan area networks, and large-scale enterprise applications. It integrates RF signal input and optical dual output (10 dBm + 10 dBm), delivering robust signal performance over long distances.
Built with cutting-edge technology, the 10+10 dBm transmitter ensures excellent RF-to-optical conversion, minimal distortion, and outstanding signal integrity. With support for standard SC/APC or FC/APC optical connectors and stable wavelength performance, this transmitter simplifies integration into new and existing fiber infrastructure while providing consistent, high-quality signal distribution.
Key Features of 10+10 dBm Optical Transmitter with RF-IN
1. Dual 10 dBm Optical Output
This transmitter provides two independent 10 dBm optical outputs, enabling simultaneous distribution of RF signals over two separate fiber optic lines. This feature enhances redundancy, scalability, and network expansion without additional hardware costs.
2. Integrated RF-IN Port
Equipped with a high-quality RF-IN port, the device accepts a broad range of input frequencies, typically from 47 to 1000 MHz, supporting various RF-based applications including CATV and broadband services. It ensures effective signal conversion with minimal noise.
3. DFB Laser with High Stability
The transmitter uses a Distributed Feedback (DFB) laser known for its low noise and excellent wavelength stability (typically 1310nm ±10nm or 1550nm), making it ideal for long-distance, high-fidelity optical signal transmission.
4. Low Noise and High Linearity
Engineered for optimal signal clarity, the transmitter offers low noise figures and superior linearity, ensuring high-quality audio, video, and data signal transmission without distortion or loss.
5. APC Connector Support
Available with SC/APC or FC/APC connectors, this transmitter significantly reduces back reflection and improves overall system reliability by using angled-polished connectors.
6. Intelligent Monitoring Interface
An LED or digital display panel provides real-time information about RF input level, optical output power, temperature, and system status. This allows operators to manage performance and identify faults efficiently.
Applications of the 10+10 dBm Optical Transmitter with RF-IN
-
CATV Signal Transmission: Distributes RF signals to multiple locations with minimal signal degradation.
-
FTTH (Fiber to the Home): Centralized transmission point for homes or buildings in fiber networks.
-
Optical Distribution Networks: Ideal for long-haul optical transmission in regional or national networks.
-
Enterprise Networks: Supports large office buildings, industrial campuses, or data centers with advanced optical distribution needs.
-
Telecommunication Backbone: Ensures robust signal integrity across the backbone of telecom systems.
Technical Specifications (Typical)
| Parameter | Specification |
|---|---|
| Optical Output Power | 10 dBm x 2 |
| Optical Wavelength | 1310nm ±10nm / 1550nm |
| RF Input Range | 47 – 1000 MHz |
| RF Input Level | 80 dBµV (adjustable) |
| Return Loss | ≥ 55 dB |
| Connector Type | SC/APC or FC/APC |
| Power Supply | AC 220V or DC 48V |
| Operating Temperature | -10°C to +50°C |
| Humidity | ≤ 95% (non-condensing) |
Advantages of the 10+10 dBm Transmitter with RF-IN
-
Dual optical outputs reduce the need for additional transmitters.
-
Improved cost-efficiency through integrated RF-to-optical design.
-
Minimal maintenance with reliable long-term operation.
-
Compatible with existing fiber systems, reducing upgrade complexity.
-
Ideal for both indoor headends and outdoor cabinets due to wide temperature tolerance.
Package Contents
-
10+10 dBm Optical Transmitter with RF-IN
-
Power Cable
-
Mounting Kit
-
User Manual
-
Quality Assurance Certificate
Conclusion
The 10+10 dBm Transmitter with Optical and RF-IN is a top-tier solution for telecom operators, broadcasters, and network integrators requiring high-performance signal distribution with minimal interference and maximum reliability. With powerful dual outputs, high linearity, and integrated RF compatibility, this transmitter ensures seamless and efficient optical transmission for a wide range of network applications.
Whether you’re expanding a CATV system, deploying a new FTTH solution, or strengthening a core telecom network, this transmitter delivers the performance and dependability your system needs.
