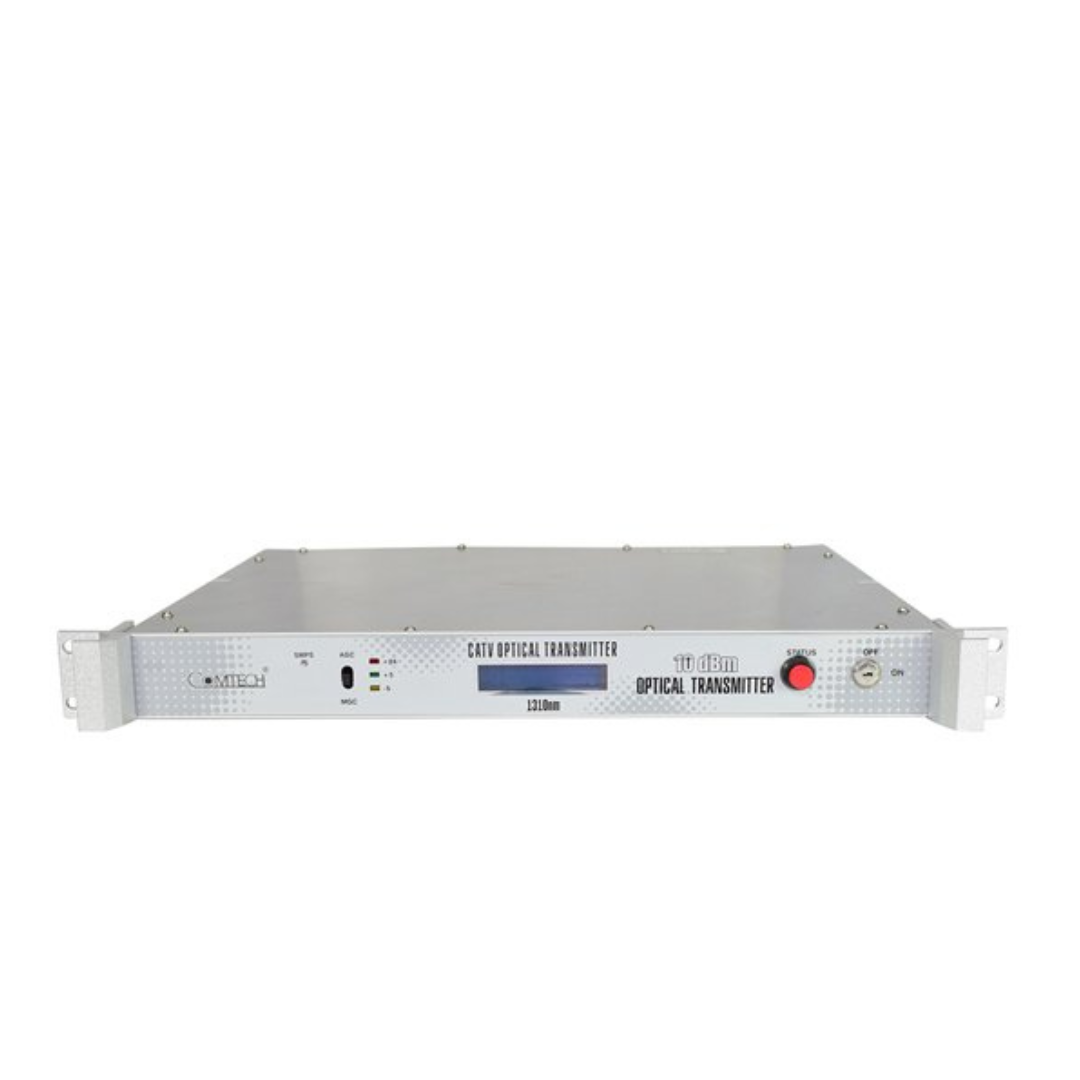

10 DBM Cable Optical Transmitter

Description

10 dBm Cable Optical Transmitter – Reliable and Efficient Signal Transmission

The 10 dBm Cable Optical Transmitter is a high-performance device designed to transmit optical signals over fiber optic networks, making it an essential component in cable television (CATV) systems, broadband services, and other telecommunication applications. Its primary function is to convert electrical signals into optical signals, which are then transmitted over optical fiber, ensuring that high-quality signals reach their destination with minimal loss or degradation.

As technology continues to evolve, the need for robust, reliable, and high-performance equipment has become more crucial. The 10 dBm Cable Optical Transmitter stands out by offering excellent signal conversion capabilities, a stable and secure performance, and long-lasting durability. This device provides the ideal solution for applications requiring efficient and clear signal delivery across long distances in both residential and commercial networks.

---

What is a 10 dBm Cable Optical Transmitter?

A 10 dBm Cable Optical Transmitter is a device used to convert electrical signals into optical signals at a power level of 10 dBm. This device is typically used in fiber-optic communications, particularly for transmitting television, internet, and data signals over fiber-optic cables in systems like CATV and FTTH (Fiber to the Home). It supports high-speed, long-distance transmission, ensuring that signals are delivered with minimal distortion and high-quality clarity.

The 10 dBm rating refers to the transmitter’s output power, which is essential for determining the distance over which the signal can travel without losing integrity. A higher dBm rating indicates greater transmission power, which is particularly beneficial for long-distance transmissions.

---

Key Features of 10 dBm Cable Optical Transmitter

✅ High Output Power of 10 dBm

The 10 dBm Cable Optical Transmitter offers a solid output power of 10 dBm, making it suitable for long-distance transmissions and ensuring strong signal reception across wide service areas. This high output power ensures that the signal maintains clarity and quality, even at greater distances.

✅ Stable and Reliable Performance

Built with high-performance components, this optical transmitter guarantees stable and reliable operation. It delivers consistent signal conversion with low distortion, minimizing signal loss over extended networks. Whether used for broadcasting, broadband, or CATV, this device ensures a smooth and uninterrupted signal delivery.

✅ Compact and Space-Efficient Design

The 10 dBm Cable Optical Transmitter features a compact and space-efficient design, allowing it to be easily integrated into various network setups. Its small form factor makes it easy to install in a variety of environments, including telecom racks, data centers, and distribution hubs.

✅ Broad Frequency Range

This transmitter supports a broad frequency range, typically spanning from 47 MHz to 860 MHz or higher, making it compatible with a wide range of applications, from CATV and satellite services to broadband and internet distribution. This flexibility makes it ideal for modern communication networks.

✅ Durable and Long-Lasting

The 10 dBm Cable Optical Transmitter is designed to withstand the rigors of continuous use in demanding environments. Its robust construction ensures that it operates reliably in both indoor and outdoor settings, maintaining performance even in challenging conditions.

✅ Low Power Consumption

Despite its powerful output, this optical transmitter is energy-efficient, reducing operational costs. The low power consumption design ensures it can run efficiently for extended periods without excessive energy use.

---

Applications of 10 dBm Cable Optical Transmitter

1. Cable Television (CATV) Systems

   • The 10 dBm Cable Optical Transmitter plays a vital role in cable television networks, transmitting optical signals that carry TV broadcasts to consumers. It ensures that high-quality television signals are distributed over long distances with minimal degradation.

2. Broadband Internet Networks

   • This device is also used in broadband networks, enabling high-speed internet services over fiber optic cables. It ensures that the data is delivered to end-users without delays or interruptions.

3. Fiber to the Home (FTTH) Networks

   • The 10 dBm Cable Optical Transmitter is commonly deployed in FTTH networks, enabling high-speed internet, television, and VoIP (Voice over IP) services to residential customers over long distances.

4. Telecommunications Infrastructure

   • Telecom providers use this transmitter in their infrastructure to carry voice, data, and video signals across large geographic areas, ensuring high-quality service delivery.

5. Satellite Services

   • Ideal for use in satellite communication systems, the 10 dBm Cable Optical Transmitter ensures that satellite signals are transmitted efficiently over fiber-optic networks.

---

Advantages of 10 dBm Cable Optical Transmitter

• Long-Distance Signal Transmission: With a high output of 10 dBm, this optical transmitter ensures signals can travel long distances without significant loss of quality or strength.

• Low Signal Loss: It minimizes signal attenuation, maintaining signal clarity over long transmission paths, which is crucial for large-scale network deployments.

• Energy Efficiency: Its low power consumption ensures it operates efficiently without excessive energy costs, making it environmentally friendly and cost-effective.

• Versatility: The transmitter is versatile and can be used in various applications, including CATV, broadband networks, and telecom infrastructure.

• Easy Integration: With its compact design and standard connectivity options, it can be easily integrated into existing networks, making it an excellent choice for both new installations and network upgrades.

---

Technical Specifications (Sample)

• Output Power: 10 dBm

• Wavelength: 1310 nm or 1550 nm

• Frequency Range: 47 MHz to 860 MHz

• Power Supply: AC 90V-260V

• Operating Temperature: -10°C to +50°C

• Connector Type: SC/APC, SC/UPC

• Modulation Type: Analog/Modulated

• Dimensions: 1U Rack Mountable

• IP Rating: IP40 (Dust-proof)

---

Conclusion

The 10 dBm Cable Optical Transmitter is a powerful, reliable, and efficient device designed for high-performance transmission of optical signals in a wide variety of communication systems. Whether you’re running a CATV, broadband, or telecom network, this transmitter ensures that your signals reach their destination with minimal loss and maximum clarity. Its versatile applications, low power consumption, and durable design make it an essential component in modern fiber-optic communication networks.
