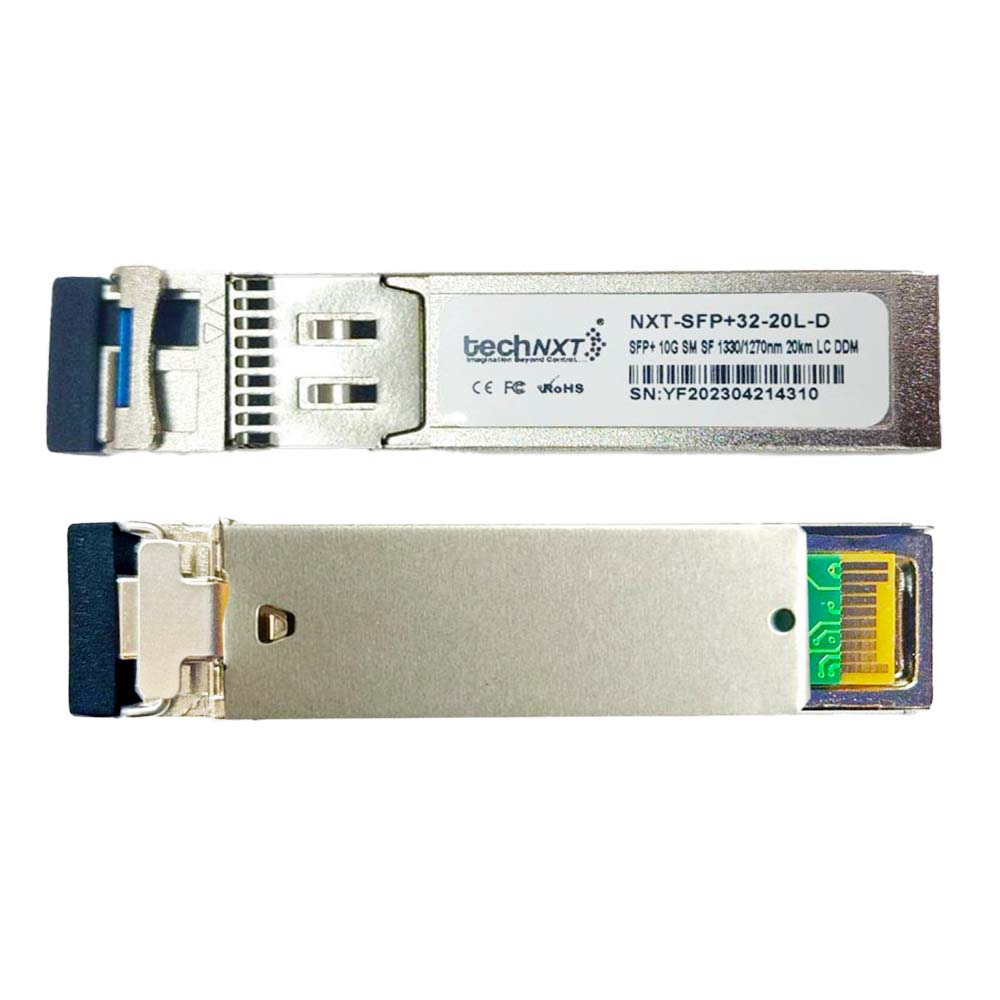

10 GBPS bidi SM SF 1330nm/ 1270nm 20 KM LC DDM

Description

10Gbps BiDi SFP+ Optical Transceiver – 1330nm/1270nm, LC Connector, 20km with DDM

The 10 GBPS bidi SM SF 1330nm 1270nm 20 KM LC DDM optical transceiver module is a high-performance, cost-effective solution for long-distance data transmission over single-mode fiber (SMF). Using bidirectional (BiDi) transmission technology, this transceiver enables full-duplex communication over a single fiber by using 1330nm for transmitting and 1270nm for receiving signals. It is specially designed for 10GBASE-BX Ethernet applications and is ideal for deployments in enterprise backbones, data centers, metropolitan networks, and telecom access systems.

Compact in size and compatible with standard SFP+ interfaces, this module supports hot-pluggability, advanced digital diagnostic monitoring (DDM), and seamless integration with major networking brands. It conforms to the SFP+ MSA (Multi-Source Agreement) and IEEE 802.3ae 10GBASE-BX20 specifications.

---

Key Features

---

1. 10Gbps High-Speed BiDi Transmission

This transceiver module delivers reliable 10 Gigabits per second (Gbps) full-duplex data transmission over a single optical fiber. With a BiDi design, it significantly reduces fiber usage while maintaining performance—making it ideal for:

• High-density networks

• Enterprise interconnects

• Metro Ethernet applications

• FTTx and broadband infrastructure

The 10GBASE-BX20 standard ensures consistent, high-bandwidth connectivity for demanding network environments.

---

2. BiDi Wavelength Pairing – 1330nm TX / 1270nm RX

This BiDi module transmits at 1330nm and receives at 1270nm, and is used in pairs with a complementary module (1270nm TX / 1330nm RX). This wavelength division multiplexing approach allows for two-way communication on a single strand of fiber, cutting cable requirements in half and reducing installation complexity and costs.

---

3. Transmission Distance of 20km

The module supports a reach of up to 20 kilometers over standard single-mode fiber (SMF), offering flexibility for medium- to long-range networking needs such as:

• Campus backbone links

• Data center interconnections

• Enterprise-to-branch connections

• Telecom access networks

Its long-distance capability makes it suitable for modern network demands without the need for signal repeaters.

---

4. SFP+ Form Factor with Simplex LC Connector

This transceiver uses a compact, hot-pluggable SFP+ form factor, which allows it to be installed or swapped without shutting down the system. The simplex LC interface simplifies installation and provides reliable physical connectivity in high-density environments.

It fits seamlessly into any SFP+ port found in Ethernet switches, routers, media converters, or OLT devices.

---

5. Digital Diagnostic Monitoring (DDM)

With built-in DDM (Digital Diagnostic Monitoring) functionality compliant with SFF-8472, users can monitor the following in real time:

• Optical output and input power

• Laser bias current

• Module temperature

• Power supply voltage

This real-time visibility helps detect issues early, optimize performance, and reduce downtime.

---

6. Energy Efficient & Hot Swappable

The 10Gbps BiDi SFP+ module operates with low power consumption, ensuring minimal heat output and efficient use in high-density environments. Its hot-swappable nature allows for convenient maintenance or upgrades without service interruption, contributing to smoother network operations.

---

7. Broad Compatibility and Compliance

This transceiver is:

• Compliant with IEEE 802.3ae 10GBASE-BX20

• Fully aligned with SFP+ MSA specifications

• RoHS compliant and Class 1 laser safety certified

• Compatible with a wide range of networking equipment from Cisco, Huawei, HP, Juniper, Mikrotik, and more

Its plug-and-play design ensures fast deployment and reliable operation across multi-vendor platforms.

---

Use Case Scenarios

• Campus Networks: Link buildings or departments with a single fiber strand.

• Data Centers: High-speed, long-range connections between servers and switches.

• Telecom Infrastructure: Cost-effective deployment in access and distribution networks.

• Government & Education: Fiber network expansion with reduced cable footprint.

---

Conclusion

The 10Gbps BiDi SM SFP+ 1330nm/1270nm 20km LC DDM transceiver offers a powerful combination of performance, efficiency, and flexibility. Its bidirectional design simplifies network architecture and reduces fiber usage, while the 20km range supports mid- to long-distance applications. With added DDM features, hot-swappability, and broad compatibility, this module is an essential solution for modern networks looking to scale with speed and reliability. Whether for enterprise, telecom, or data center use, this transceiver ensures optimal performance and streamlined deployment.
