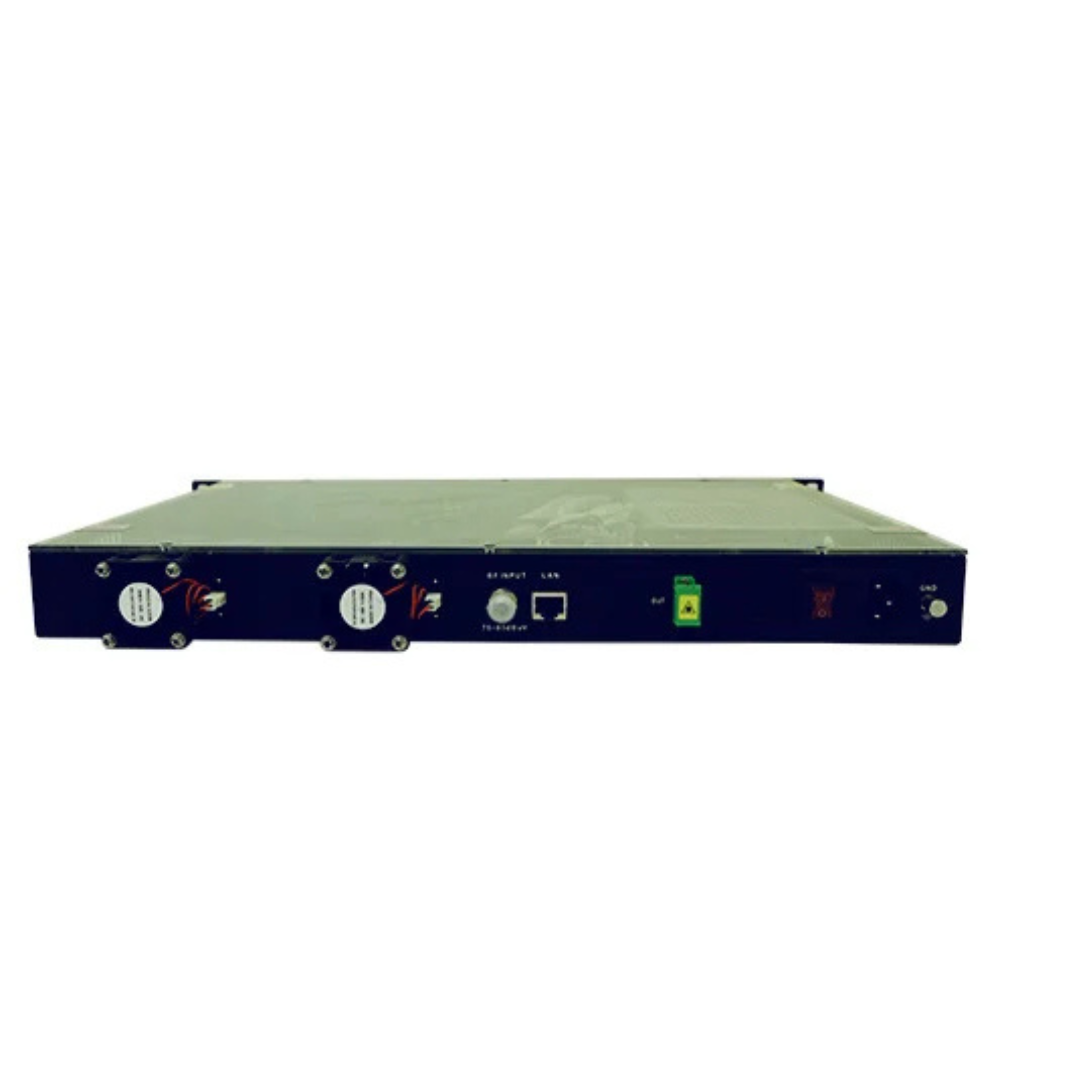

13DBM Optical Transmitter

Comtech 13dBm Optical Transmitter

Usage/Application	Networking
Brand	Comtech
Power	9.0 V DC Operated
Wavelength	13 dBm
Optical Connector	SC
Color	Grey
Material	Aluminum
Model Name/Number	13DBM Optical Transmitter
Model Number	13DBM Optical Transmitter
Optical Output	13 dBm = 20 mW
Country of Origin	Made in India

Specifications:

High performance DFB laser diode module with internal isolation
Dual IC (NXP) advanced pre-distortion correction circuit (PDC)
AGC/MGC switching button on the front panel
VFD provides real-time display of key parameters: optical output power, operating current, internal temperature, modulation ratio, cooling/heating status
Double SMPS with automatic switching for redundancy
Adjustable attenuator (-20~0 dB) in the back panel for laser diode input level adjustment
Optical Output: 13 dBm = 20 mW

Additional Information:

Production Capacity: 1000 units
Delivery Time: 2 days
Packaging Details: SKY BIRDS INTERNATIONAL

Category: OPTICAL TRANSMITTERS

Description
Reviews (0)

Description

13dBm Optical Transmitter – High-Power Fiber Optic Signal Transmission Solution

The 13dBm Optical Transmitter is a high-output, state-of-the-art optical signal transmission device specifically designed for long-distance fiber optic communications. Built for performance and durability, this transmitter ensures stable and efficient delivery of RF signals over optical fibers, making it an ideal solution for CATV networks, FTTH (Fiber to the Home) systems, and other broadband applications.

With an output power of 13dBm, it enables signal distribution over long fiber links without the need for excessive amplification. The transmitter is engineered using cutting-edge technology to ensure excellent linearity, low noise, and minimal distortion—essential features for high-fidelity analog and digital signal broadcasting.

Key Features of 13dBm Optical Transmitter

1. Powerful 13dBm Optical Output

With a high optical output of 13 decibels-milliwatts (dBm), the transmitter provides robust signal strength suitable for long-distance transmission. It reduces the need for external optical amplifiers in medium-range deployments, thus offering cost savings and simplicity in system design.

2. Stable 1550nm Wavelength Operation

Operating at the standard 1550nm wavelength, this optical transmitter ensures low transmission loss and is compatible with WDM, DWDM, and EDFA systems. The stable wavelength allows it to maintain consistent performance even under varying environmental conditions.

3. High Linearity & Low Distortion

The 13dBm Optical Transmitter delivers outstanding CNR (Carrier-to-Noise Ratio) and CTB/CSO performance, making it suitable for both analog and digital signal applications. This ensures excellent picture and sound quality in TV broadcasting and superior data transmission in broadband networks.

4. Advanced Microprocessor Control

Integrated with a smart microprocessor system, the transmitter constantly monitors key parameters such as optical power output, laser temperature, and input RF signal levels. Real-time monitoring allows users to detect faults early and maintain optimal system performance.

5. APC Connector with Low Back Reflection

Fitted with APC (Angled Physical Contact) connectors, the device minimizes back reflection, ensuring clean and uninterrupted signal transmission. The SC/APC or FC/APC interface options provide flexibility for integration into various fiber optic systems.

6. Compact & Rack-Mountable

This optical transmitter comes in a 1U standard rack-mount metal casing, making it easy to install in telecom closets, broadcast head-ends, or data centers. Its durable design ensures long-term operation with minimal maintenance.

Technical Specifications

Specification	Details
Optical Output Power	13 dBm
Optical Wavelength	1550 ± 10nm
Connector Type	SC/APC or FC/APC
RF Input Range	47 MHz – 1000 MHz
RF Input Level	80 ± 5 dBμV
CNR	≥ 52 dB
CTB / CSO	≤ -65 dB
Return Loss	≥ 55 dB
Power Supply	90 – 260V AC, 50/60 Hz
Power Consumption	≤ 20W
Operating Temperature	-10°C to +50°C
Dimensions	1U Rack Mountable

Applications

CATV Distribution Systems: Transmit high-quality TV signals across large-scale cable TV infrastructures.
FTTH Networks: Ideal for signal transmission in fiber-to-the-home architectures, ensuring high-speed connectivity.
Telecom Backbone Networks: Integrates seamlessly into long-haul and metro fiber optic backbones.
Broadcasting Headends: Ensures reliable signal distribution to multiple endpoints with consistent performance.
Optical Amplifier Systems: Compatible with EDFA for network expansion and longer transmission distances.

Advantages

High Power Output enables broader coverage and fewer devices.
Superior Signal Quality with minimal distortion and noise.
Compatible with modern WDM/DWDM technologies.
Efficient Thermal Design ensures stable operation across temperature ranges.
Plug-and-play integration with SC/APC or FC/APC ports.

What’s Included

13dBm Optical Transmitter Unit
Power Cable
Mounting Screws and Brackets
User Guide
Warranty Certificate

Conclusion

The 13dBm Optical Transmitter is the perfect choice for professionals and businesses looking to build or upgrade their fiber optic networks. Whether it’s for broadcasting high-definition video, internet data transmission, or voice services, this transmitter delivers exceptional performance, reliability, and efficiency. Its advanced design, powerful output, and compatibility with modern optical technologies make it an indispensable asset for modern digital networks.

If you are in the business of fiber optics, telecommunications, or broadband services, investing in a high-quality transmitter like the 13dBm Optical Transmitter is key to ensuring optimal network performance and customer satisfaction.
