16×19.5DBM MODULAR PON EDFA WITH UPS POWER SUPPLY

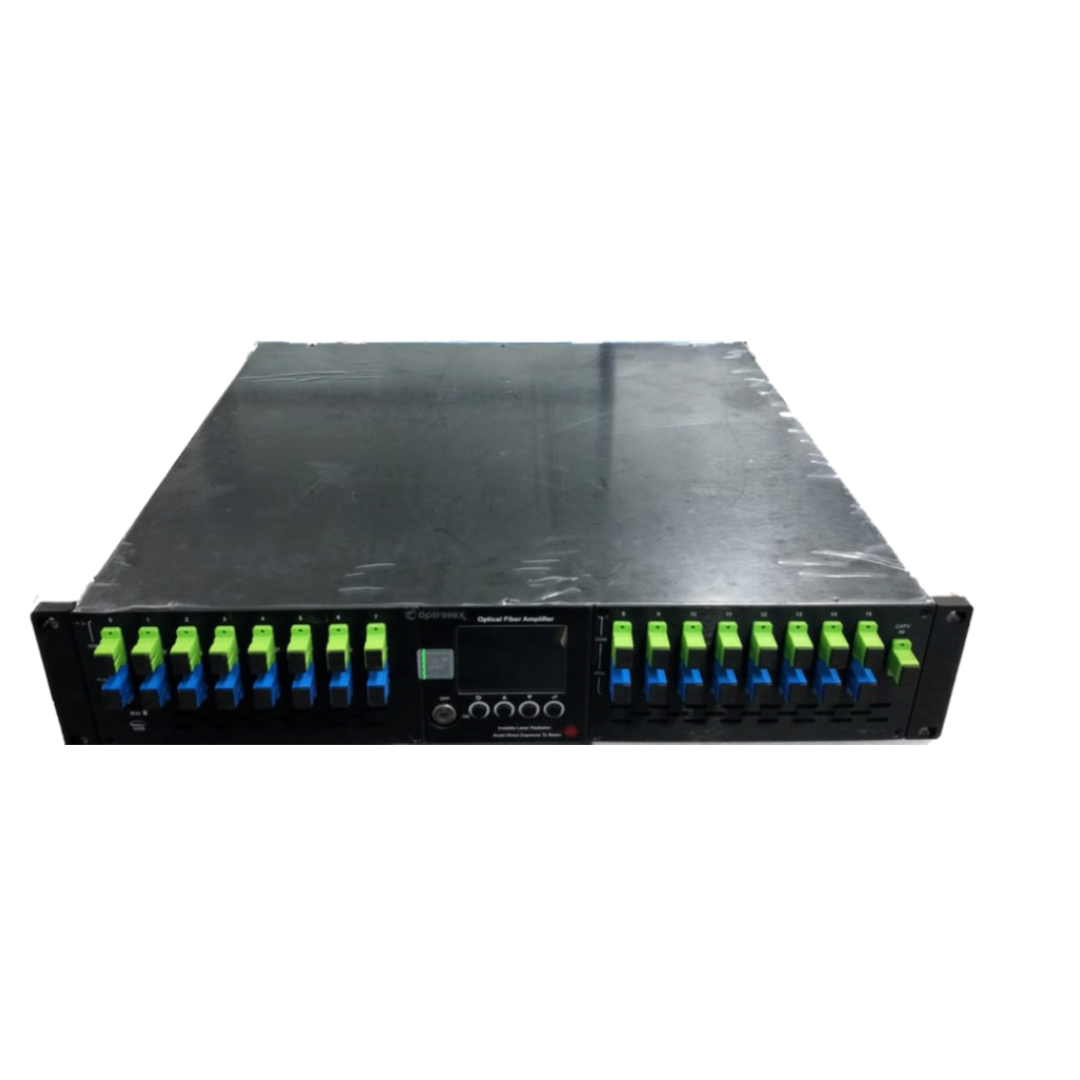

16×19.5dBm Modular PON EDFA With UPS Power Supply

Brand	SKY BIRDS INTERNATIONAL
Model Name/Number	16×19.5dBm Modular PON EDFA With UPS Power Supply
Color	Black
Connectivity Type	Dual SMPS with UPS Power Supply
Warranty	6 Month
Operating Temperature	In all
Packaging Type	BOX
Weight	0.3 KG
GSM Module (Optional)	PE-1619M
Automation Grade	Automatic
Material	Metal
I Deal In	New Only
Remote Control	No
Input Optical Power	+5~-5dBm
Bandwidth	1535~1565nm
Country of Origin	Made in India

Features:

WDM EDFA
19.5 X 16 dBm Output (Variable) with SNMP Support
Dual SMPS with UPS Power Supply
Battery Charging option
Optional Modules: Optical Switch, RF Transmitter, GSM Module
2U (19inch) indoor Casing

Description

16×19.5dBm Modular PON EDFA with UPS Power Supply: A Powerful and Reliable Solution for Fiber Networks

The 16×19.5dBm Modular PON EDFA with UPS Power Supply is a high-performance Erbium-Doped Fiber Amplifier (EDFA) designed to meet the needs of modern fiber-optic networks. This device is specifically engineered for PON (Passive Optical Network) applications and offers robust amplification for long-distance signal transmission, ensuring the high-speed delivery of broadband services over optical networks. Ideal for use in telecommunication networks, ISP (Internet Service Provider) infrastructure, and enterprise networks, this EDFA guarantees consistent and reliable performance.

With 16 ports delivering 19.5 dBm output power per port, the Modular PON EDFA provides superior signal amplification in both downstream and upstream directions. The integrated UPS (Uninterruptible Power Supply) ensures that the system remains operational even in the event of a power failure, offering 24/7 reliability and reducing potential service interruptions.

Key Features of the 16×19.5dBm Modular PON EDFA with UPS Power Supply

✅ High Output Power for Maximum Performance

The 16×19.5dBm Modular PON EDFA is equipped with a high output power of 19.5 dBm per port, which ensures strong and consistent signal amplification across a large number of optical fibers. This powerful amplification is ideal for long-distance optical transmission, reducing signal loss and boosting the overall performance of fiber-optic networks. Whether used in access networks or backbone infrastructure, the EDFA ensures that data, voice, and video services are delivered with high integrity and reliability.

✅ Modular Design for Flexibility and Scalability

One of the key advantages of this Modular PON EDFA is its modular design, which offers flexibility in deployment and easy scalability. Operators can choose to add or remove amplifier modules based on the specific requirements of their network, making it an ideal choice for both small-scale and large-scale network infrastructures. This modularity allows service providers to expand their networks without significant upfront costs, providing a cost-effective solution for growing businesses or networks.

✅ UPS Power Supply for Uninterrupted Service

The integrated UPS power supply ensures uninterrupted operation of the Modular PON EDFA during power outages or fluctuations. The UPS maintains the power supply for the amplifier and ensures that fiber-optic services remain active without disruption. This is particularly important for mission-critical applications and networks that require continuous service availability, such as internet service providers (ISPs) and telecommunications companies. The inclusion of the UPS adds an extra layer of reliability and reduces the risk of network downtime.

✅ Enhanced Network Performance

The 16×19.5dBm Modular PON EDFA enhances network performance by boosting the optical signal power without introducing significant noise. The low noise figure of the device ensures that signal clarity and quality are maintained, even over long distances. This is crucial for delivering high-quality services, such as high-speed internet, IPTV, and VoIP, across the fiber-optic network.

✅ Wide Application Support

This Modular PON EDFA is suitable for a variety of fiber-optic applications, including FTTH (Fiber to the Home), FTTB (Fiber to the Building), and FTTC (Fiber to the Curb) installations. The amplifier is capable of supporting both single-mode and multi-mode fibers, making it versatile enough to handle diverse network types. Whether used in local area networks (LANs), metro area networks (MANs), or long-distance backhaul connections, the Modular PON EDFA provides the necessary amplification to ensure that high-speed broadband services reach their destinations reliably.

✅ Efficient Heat Management

The Modular PON EDFA comes with advanced thermal management, ensuring that the device remains cool even under high loads. This is essential for maintaining consistent performance over time and extending the lifetime of the equipment. The efficient cooling system reduces the need for external cooling solutions and minimizes the risk of thermal damage, providing a long-lasting and durable solution for fiber-optic networks.

✅ Easy Integration and Operation

With user-friendly interface options and management features, the 16×19.5dBm Modular PON EDFA with UPS Power Supply is easy to integrate into existing fiber-optic network infrastructures. Operators can monitor and manage the device remotely, ensuring that maintenance, updates, and troubleshooting can be done efficiently. The device supports SNMP (Simple Network Management Protocol) for network monitoring, ensuring that any issues can be quickly identified and resolved, minimizing service interruptions.

Applications of the 16×19.5dBm Modular PON EDFA with UPS Power Supply

Telecom Providers and ISPs: The Modular PON EDFA is ideal for telecom providers and ISPs that need to support high-speed internet services over long-distance fiber-optic networks. Its high output power and UPS integration make it a reliable solution for delivering uninterrupted services to a wide range of customers.
Data Centers: In data centers that rely on fiber-optic connections for internal communication and client connectivity, the 16×19.5dBm Modular PON EDFA ensures that data transmission is stable and efficient, even when multiple servers and systems are in operation.
Metro and Long-Distance Networks: The high amplification power and modular design of the EDFA make it perfect for metro and long-distance fiber-optic networks, ensuring the efficient delivery of voice, data, and video services across cities and regions.
FTTH (Fiber to the Home): This Modular PON EDFA is perfect for FTTH installations, where high-speed services need to be reliably delivered to homes. The UPS power supply ensures the system remains operational even during power failures, providing continuous broadband services.

Technical Specifications

Model: 16×19.5dBm Modular PON EDFA with UPS Power Supply
Amplifier Type: Erbium-Doped Fiber Amplifier (EDFA)
Port Capacity: 16 Ports
Output Power: 19.5 dBm per Port
Amplification: 2.5 Gbps (Gigabit speeds)
Power Supply: Integrated UPS (Uninterruptible Power Supply)
Noise Figure: Low Noise for Clear Signal Transmission
Applications: FTTH, FTTB, FTTC, Telecom Networks, ISPs, Data Centers
Cooling: Advanced Heat Management System
Monitoring: SNMP and Remote Management

Conclusion

The 16×19.5dBm Modular PON EDFA with UPS Power Supply is a reliable, high-performance solution for fiber-optic networks that require long-distance signal amplification and uninterrupted operation. With its high output power, modular design, and integrated UPS, it offers excellent scalability and flexibility for telecom providers, ISPs, and large-scale network infrastructures. By ensuring consistent and high-quality service delivery, this PON EDFA is a critical component for maintaining fast, reliable broadband services in modern communication networks.
