Description

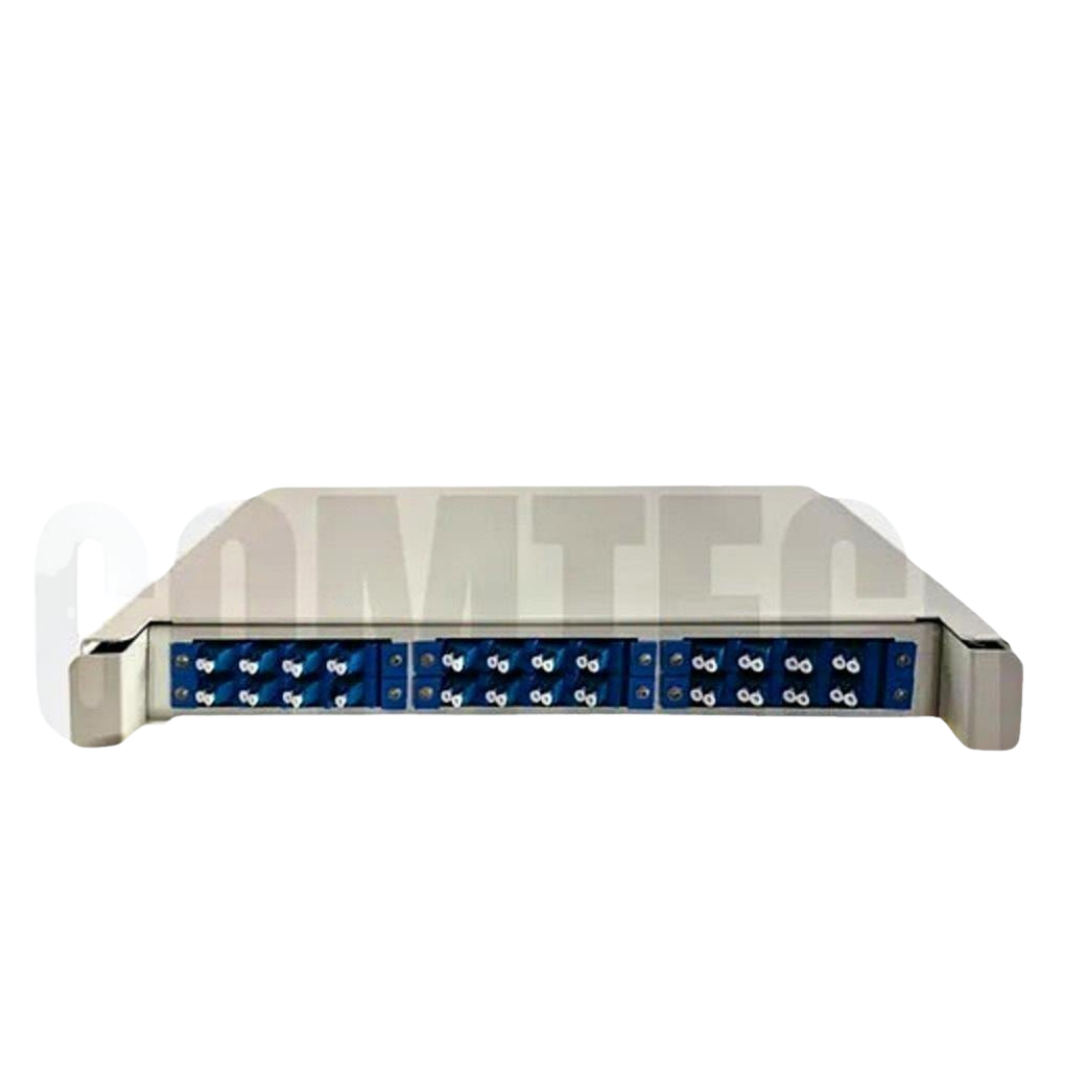

24 Port LC Duplex Sliding Rack Mount LIU – Model: 24F/LC/DPLX/SLD/RM/LIU
The 24 Port LC Duplex Sliding Rack Mount LIU (Model: 24F/LC/DPLX/SLD/RM/LIU) is an advanced and robust fiber optic termination and distribution unit, engineered to meet the evolving demands of high-density fiber management in modern network infrastructures. Designed for seamless integration into standard 19-inch racks, this rack-mountable LIU (Light Interface Unit) provides a reliable and organized interface for fiber optic cabling.
With its sliding tray mechanism, it allows effortless access to internal components, ensuring simplified splicing, patching, and cable management. It supports up to 24 LC duplex adapters, equating to 48 fiber terminations, making it ideal for high-capacity environments such as data centers, telecom networks, enterprise backbones, and FTTH deployments.
Key Features
-
24 LC Duplex Port Configuration
Accommodates up to 48 fibers, allowing high-density terminations with LC connectors, which are known for their compact size and superior performance. -
Sliding Tray Design
The pull-out sliding tray offers easy front access to fiber splicing and patching, minimizing disruption during maintenance and upgrades. -
Rack Mountable
Compatible with standard 19” racks and enclosures, ensuring universal deployment across telecom and networking infrastructures. -
Robust Build Quality
Made from high-grade powder-coated steel or aluminum (based on the variant), the unit provides strength, durability, and corrosion resistance. -
Cable Management Accessories Included
Comes equipped with cable organizers, routing guides, and grommets to ensure neat, secure fiber routing and strain relief. -
Modular Design
Easily expandable and customizable with adapter plates, splice trays, and additional ports for future scalability. -
Preloaded or Empty Option Available
Depending on project requirements, this LIU can be supplied preloaded with LC duplex adapters and pigtails or as an empty enclosure ready for customization.
Technical Specifications
-
Model: 24F/LC/DPLX/SLD/RM/LIU
-
Fiber Capacity: Up to 48 fibers (24 LC duplex adapters)
-
Adapter Type: LC Duplex (Ceramic sleeve)
-
Material: Powder-coated MS or aluminum alloy
-
Mounting Type: 19” Rack Mount
-
Tray Type: Sliding front access tray
-
Dimensions: Standard 1U height
-
Cable Entry: Rear cable entry with grommets
-
Accessories Included: Splice trays, cable ties, routing guides, grounding points
-
Finish: Anti-static powder coating
-
Operating Temperature: -20°C to +60°C
-
Compliance: TIA/EIA-568, RoHS, ISO 9001
Applications
-
Telecommunication Networks
Provides efficient fiber organization and termination in central offices, exchanges, and head-end facilities. -
Data Centers & Server Rooms
Perfect for high-density patching in rack-based environments requiring reliable fiber performance. -
FTTH/FTTB Projects
Suitable for terminating and distributing fibers in access networks. -
Campus & Enterprise Networks
Centralized fiber management for universities, hospitals, corporate buildings, and smart campuses. -
Broadcast & Media Facilities
Ensures uninterrupted high-bandwidth transmission for live broadcasting setups and media studios.
Advantages
-
High Port Density: Supports a large number of fiber connections in a compact 1U design.
-
User-Friendly Maintenance: Sliding tray ensures easy accessibility for technicians during installation or servicing.
-
Professional Cable Management: Protects fibers from bends, breaks, and disorganization.
-
Customizable & Scalable: Can be tailored to suit various project needs and allows future upgrades.
-
Durable & Long-Lasting: Built to withstand industrial conditions while ensuring long-term operation.
Why Choose the 24F/LC/DPLX/SLD/RM/LIU from Comtech?
This 24 Port LC Duplex Sliding Rack Mount LIU from Comtech is a reliable choice for network professionals who prioritize performance, scalability, and organized fiber management. It reflects Comtech’s commitment to delivering quality fiber optic infrastructure components that simplify deployment while maintaining network integrity.
Conclusion
The 24F/LC/DPLX/SLD/RM/LIU is a smart investment for any organization looking to centralize and manage its fiber terminations efficiently. Its sliding tray, high-density port configuration, and robust design make it suitable for a wide array of professional network environments. Whether you’re upgrading existing systems or laying the foundation for future connectivity, this LIU ensures smooth, reliable, and well-organized fiber integration.
