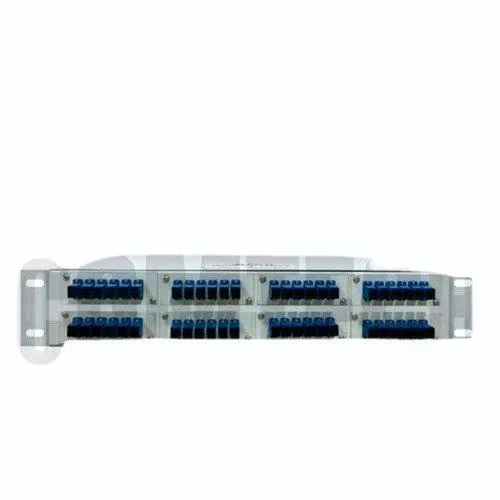

48 Ports Fixed Type Rack Mount Odf, Model Name/Number: 48F/FXD/RM/LIU Loaded

Description

48 Ports Fixed Type Rack Mount ODF, Model Name/Number: 48F/FXD/RM/LIU Loaded

The 48 Ports Fixed Type Rack Mount ODF (Optical Distribution Frame), Model Name/Number: 48F/FXD/RM/LIU Loaded is an essential component designed to optimize and manage optical fiber network infrastructure. Built to accommodate 48 optical fibers, this rack mount ODF provides a robust, secure, and organized system for fiber optic cable termination, splicing, and management. Whether you’re working in a data center, telecom room, or a fiber-to-the-home (FTTH) network, the 48 Ports Fixed Type Rack Mount ODF ensures efficient space utilization, accessibility, and reliability in your fiber management.

Key Features

High Capacity with 48 Ports

The 48 Ports Fixed Type Rack Mount ODF is designed to support up to 48 fibers, making it a powerful and scalable solution for large-scale fiber optic networks. It allows for seamless termination and splicing of optical fibers, ensuring that your network can handle high data demands with minimal signal loss. Whether you’re handling fiber-to-the-home (FTTH) systems, local area networks (LANs), or metropolitan area networks (MANs), this ODF is well-suited for high-capacity installations.

Space-Saving, Rack-Mountable Design

This ODF is a rack-mounted unit, designed to save valuable space in telecommunication and data center environments. With its compact design, the 48 Ports Fixed Type Rack Mount ODF can easily be integrated into standard 19-inch racks, helping to organize and centralize fiber management. The rack-mounted configuration allows for straightforward installation, efficient cable management, and easy accessibility for maintenance and troubleshooting.

Loaded with High-Quality Components

The 48F/FXD/RM/LIU Loaded model comes preloaded with high-quality components for efficient fiber management. It includes fiber management trays, adapters, and splice trays, which streamline the process of fiber termination and splicing. These features enhance both the safety and functionality of the unit, reducing the risk of damage to the optical fibers and ensuring optimal signal transmission.

Durable and Robust Construction

Crafted from high-grade steel and other durable materials, this ODF is built to last. Its rugged construction ensures that it can withstand the rigors of daily use in demanding environments. The unit is also designed to provide excellent protection to sensitive optical fibers, safeguarding them from dust, moisture, and physical stress. This makes it ideal for environments that require long-lasting, reliable fiber management solutions.

Efficient Fiber Routing and Cable Management

Proper cable management is critical for maintaining the performance of optical fiber networks. The 48 Ports Fixed Type Rack Mount ODF features a well-organized routing system that ensures optical fibers are easily routed, managed, and stored in an orderly fashion. The internal fiber management system minimizes the risk of bending and damage, ensuring the integrity of the fibers while making installation and maintenance quick and hassle-free.

Secure Fiber Termination

The ODF is equipped with secure termination points for optical fibers. It allows for a clean and safe connection for both input and output fibers, preventing accidental disconnections and providing a stable and secure optical link. The ports are designed to hold the optical fibers firmly in place, reducing the likelihood of signal loss and interference.

Easy to Install and Maintain

The 48 Ports Fixed Type Rack Mount ODF is designed for ease of installation and maintenance. It is easy to mount on a standard 19-inch rack, and the preloaded components simplify setup and reduce installation time. The unit’s modular design ensures that fibers can be quickly accessed for maintenance, testing, or upgrades without causing significant disruptions to the rest of the network.

Applications

The 48 Ports Fixed Type Rack Mount ODF is suitable for a wide range of applications, including:

• Telecommunications Networks: Perfect for use in telecom exchanges, central offices, and network nodes, providing efficient fiber management and routing capabilities.

• Data Centers: Essential for organizing and managing fiber optic cables in data centers, ensuring that cables are properly routed and easily accessible for maintenance or upgrades.

• Fiber-to-the-Home (FTTH) Deployments: A key component in FTTH networks, the ODF helps centralize and organize the fiber distribution, ensuring that homes and businesses receive high-quality, uninterrupted services.

• Enterprise Networks: Ideal for enterprise network infrastructures that require efficient fiber cable management, providing a scalable and secure solution for managing high-bandwidth data transmission.

• Broadband Service Providers: Used in broadband network deployment and maintenance, allowing service providers to manage and distribute fiber optic connections to residential or business customers.

Technical Specifications

• Port Capacity: 48 fiber ports

• Mounting Type: Rack-mountable (19-inch)

• Material: High-grade steel

• Preloaded Components: Fiber management trays, splice trays, adapters

• Fiber Type: Supports both single-mode and multi-mode fiber

• Compatibility: Suitable for various fiber optic connectors, including SC, LC, and ST

• Weight: 5-8 kg (depending on specific configuration)

• Dimensions: Standard 19-inch rack size, 1U height

• Operating Temperature Range: -10°C to +50°C

• Storage Temperature Range: -40°C to +70°C

Benefits

• Improved Network Efficiency: The organization of fibers within the ODF ensures that the network operates with minimal signal interference and reduced risk of downtime.

• Scalability: As your network grows, the 48 Ports Fixed Type Rack Mount ODF can easily be expanded to accommodate additional fibers, making it a future-proof solution for evolving network demands.

• Cost-Effective: By providing an organized and efficient fiber management system, this ODF reduces installation time, maintenance costs, and the likelihood of fiber damage, providing long-term cost savings.

Conclusion

The 48 Ports Fixed Type Rack Mount ODF, Model Name/Number: 48F/FXD/RM/LIU Loaded from Comtech is an ideal solution for efficient, secure, and organized fiber optic cable management. Whether you are working on a telecom network, data center, or broadband deployment, this high-capacity ODF will enhance the reliability and performance of your fiber infrastructure. With its easy installation, durable construction, and comprehensive cable management features, it ensures that your optical network remains well-organized and operational.
