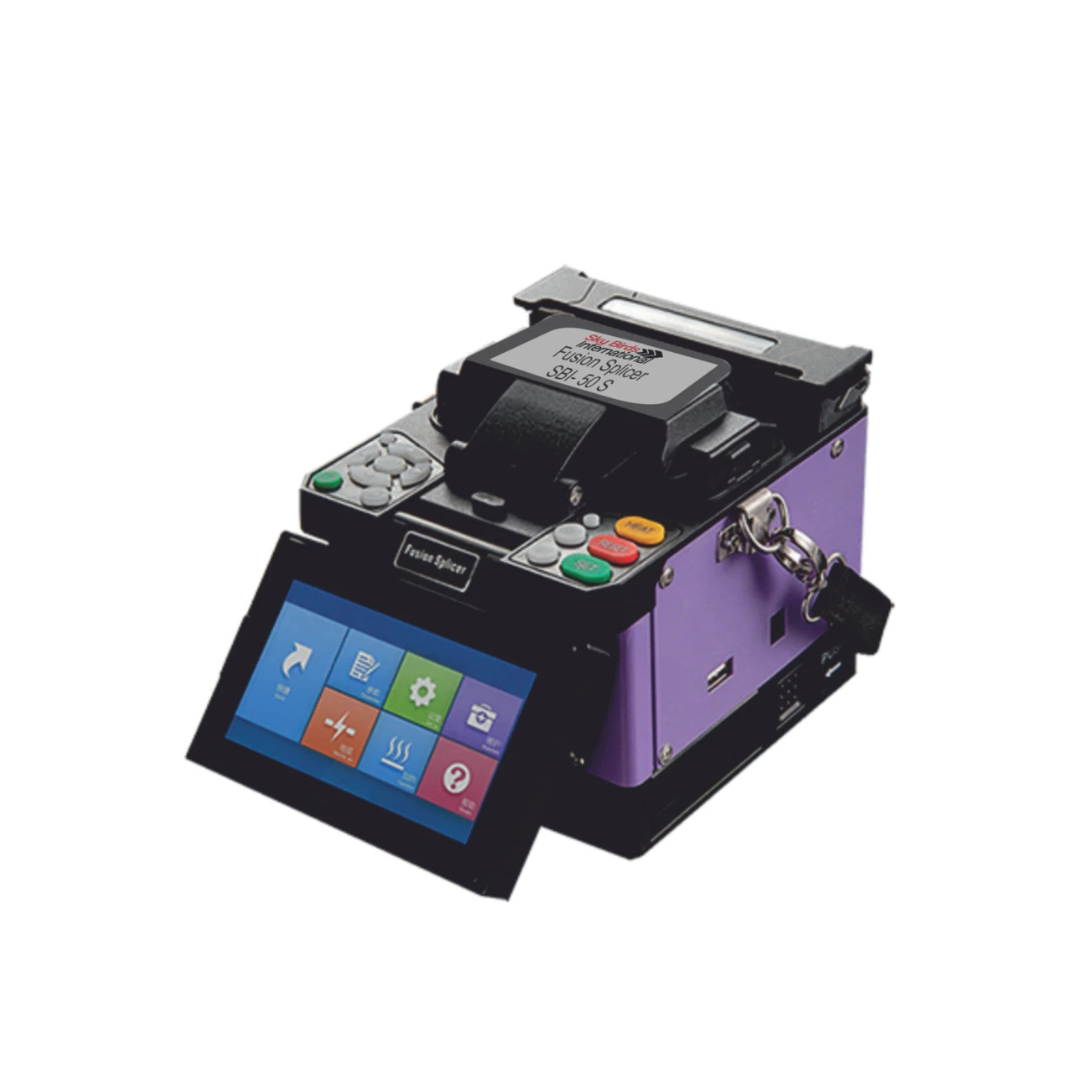

50-S Splicing Machine – Reliable Performance and Precision for Fiber Optic Splicing

The 50-S Splicing Machine is a high-efficiency fiber fusion splicer designed to meet the modern demands of fiber optic cable installation, maintenance, and repair. Whether you’re working on telecommunications infrastructure, broadband networks, or enterprise-level fiber optic systems, the 50-S delivers top-notch performance with its intelligent features, durable design, and exceptional splicing precision. This machine is engineered for professionals who seek a reliable and affordable solution for everyday splicing tasks without compromising on quality.

---

Overview of the 50-S Splicing Machine

The 50-S is a compact, easy-to-operate fiber fusion splicer suitable for both core and cladding alignment. It is tailored to provide consistent, low-loss splicing results in a wide range of environments. The splicer supports various fiber types, including single-mode (SM), multi-mode (MM), dispersion-shifted fiber (DSF), and non-zero dispersion-shifted fiber (NZ-DSF), making it a versatile solution for diverse applications.

With a high-resolution display, user-friendly interface, and powerful six-motor precision alignment system, the 50-S ensures excellent performance for technicians and installers. It is ideal for both new network deployments and maintenance of existing networks, offering fast splicing cycles, long battery life, and dependable results even in challenging field conditions.

---

Key Features of the 50-S Splicing Machine

1. 6-Motor Core to Core Alignment
   The 50-S features an advanced 6-motor alignment system that ensures highly accurate splicing by adjusting both the core and cladding of the fiber. This feature helps to reduce splice loss and ensures better signal transmission quality.

2. Fast Splicing Time
   Efficiency is key in fiber installations, and the 50-S delivers with splice times as fast as 6–8 seconds. The heating cycle is also quick, allowing heat-shrink protection sleeves to be completed in about 18–20 seconds, which reduces total operation time significantly.

3. User-Friendly Touchscreen Interface
   Equipped with a large, high-resolution LCD touchscreen, the 50-S allows users to easily monitor alignment, splice status, and estimated splice loss. Its graphical user interface is intuitive, making it ideal for both experienced technicians and beginners.

4. Multiple Fiber Compatibility
   This splicing machine supports a wide variety of fiber types and cables, including bare fiber, pigtails, drop cables, and ribbon fibers (with appropriate holders), making it suitable for many field applications and configurations.

5. Compact and Rugged Design
   Built with portability and durability in mind, the 50-S is compact and lightweight, ideal for field use. It is constructed to withstand drops, dust, and harsh weather conditions, making it a reliable companion on any job site.

6. Long Battery Life
   The high-capacity rechargeable battery supports up to 200 splicing and heating cycles per full charge, ensuring uninterrupted operation in remote areas or during extended work sessions.

7. Storage and Data Logging
   The machine is capable of storing thousands of splicing records, complete with splice loss data and images. This is essential for quality control, documentation, and later review.

8. Auto Calibration and Environmental Adjustment
   The 50-S features real-time arc calibration and automatic environmental compensation, ensuring consistent splice quality regardless of altitude, humidity, or temperature variations.

---

Applications of the 50-S Splicing Machine

• Telecommunications Infrastructure
  Ideal for telecom operators building and maintaining fiber optic networks for phone and internet services.

• FTTH (Fiber to the Home) Installations
  Used by network providers and contractors for deploying fiber directly to homes and businesses, ensuring minimal splice loss for high-speed connections.

• Broadband and CATV Networks
  Suitable for splicing in cable TV and broadband networks, where signal integrity is crucial.

• Enterprise and Data Center Cabling
  The 50-S offers the precision needed for installing and maintaining fiber connections in data centers and corporate IT infrastructures.

• Field Repairs and Maintenance
  Perfect for technicians performing emergency repairs or routine maintenance on live networks.

---

Benefits of the 50-S Splicing Machine

• Superior Splicing Accuracy
  Thanks to its core-to-core alignment and multi-motor adjustment, users can expect minimal splice loss and consistent performance.

• Time-Saving Operation
  Fast splicing and heating cycles help speed up installations and reduce labor time on site.

• Portable and Durable
  Its lightweight design and rugged build make it suitable for use in both indoor facilities and outdoor environments.

• Affordable Yet Advanced
  The 50-S offers high-end features at a cost-effective price, making it a great investment for small contractors and large organizations alike.

---

Conclusion

The 50-S Splicing Machine is a powerful, versatile, and user-friendly fiber fusion splicer designed to meet the needs of modern fiber optic networks. It provides reliable performance, precise core alignment, and robust durability — all in a portable package. Whether you’re building a new network, extending an existing one, or performing maintenance, the 50-S ensures superior splicing results every time. With its combination of advanced features, ease of use, and affordability, the 50-S is an ideal solution for professionals seeking dependable fiber optic splicing.
