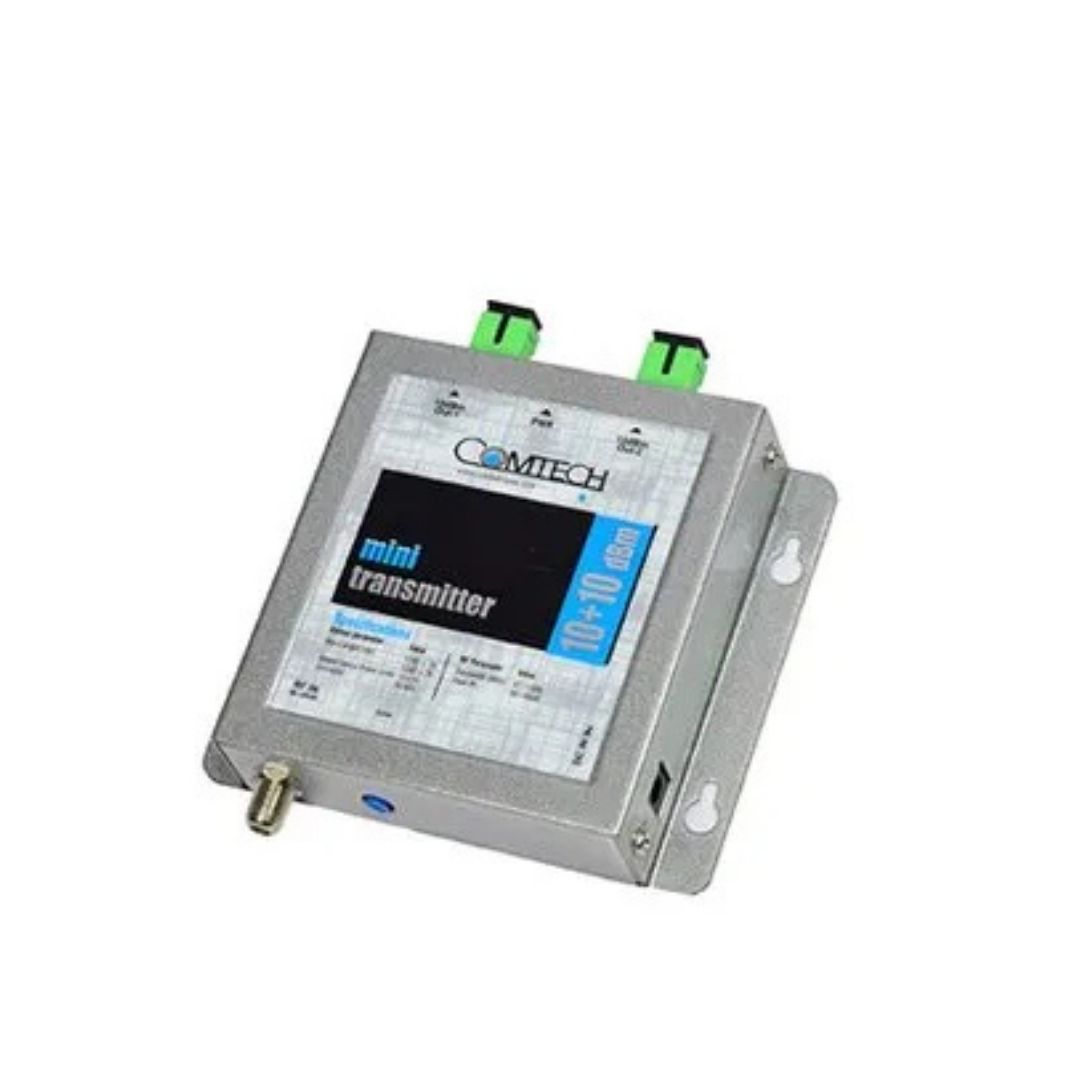

Comtech Mini Transmitter

Description

Comtech Mini Transmitter – Compact and Reliable RF to Optical Signal Solution

The Comtech Mini Transmitter is a compact, high-efficiency optical transmission device engineered to meet the evolving needs of modern fiber optic communication systems. This powerful mini transmitter is specifically designed to convert RF signals into high-quality optical signals for long-distance transmission over fiber networks. Whether deployed in CATV headend systems, FTTH infrastructure, or hybrid fiber-coaxial (HFC) networks, the Comtech Mini Transmitter ensures exceptional signal integrity, low power consumption, and space-saving installation.

Ideal for telecom operators, broadband service providers, and cable TV distributors, this transmitter delivers a professional-grade solution in a miniaturized form, without compromising performance or reliability.

---

Product Overview

The Comtech Mini Transmitter is designed for environments where space, performance, and energy efficiency are critical. It receives analog or digital RF signals and converts them into optical signals using advanced laser technology. The optical output can then be transmitted over single-mode fiber to distant nodes, optical receivers, or subscriber endpoints with virtually no signal degradation.

Compact, durable, and easy to install, this transmitter is ideal for distributing RF signals in residential, commercial, or institutional settings. Its compatibility with standard wavelengths (1310 nm and 1550 nm) allows seamless integration into most existing fiber networks.

---

Key Features

1. Compact and Lightweight Design
   Its small form factor makes it easy to install in crowded racks, wall mounts, or limited-space environments, making it perfect for modern compact headend systems.

2. High-Performance Optical Conversion
   Utilizes high-quality laser diodes to convert RF signals into optical signals with exceptional linearity and minimal distortion.

3. Low Power Consumption
   Designed for energy efficiency, the transmitter operates on low voltage while maintaining stable performance, reducing operational costs over time.

4. Wide RF Input Range
   Supports RF input frequencies from 47 MHz to 862 MHz, accommodating both analog and digital TV signals.

5. Consistent Optical Output
   Delivers stable optical output power—commonly between 3 dBm and 10 dBm—for long-distance transmission without external amplification.

6. Built-in Safety Features
   Includes over-temperature protection and laser shutdown features to protect the device and connected network components.

7. LED Indicators for Monitoring
   Front-panel LED indicators allow real-time monitoring of power status, laser activity, and signal strength, making maintenance simple.

8. Flexible Wavelength Options
   Available in 1310 nm, 1550 nm, or CWDM wavelength options to meet the needs of different network configurations.

---

Applications

• CATV Headend Distribution
  Converts and transmits cable TV signals from the central headend to multiple fiber-connected nodes.

• FTTH (Fiber to the Home)
  Delivers high-quality TV and broadband services directly to households using fiber optic networks.

• HFC (Hybrid Fiber-Coaxial) Systems
  Suitable for hybrid networks combining fiber and coaxial cable, enhancing signal reach and quality.

• MDUs, Hotels, and Campuses
  Ideal for medium- to large-scale properties needing centralized signal distribution via optical technology.

• Telecom and ISP Networks
  Supports digital signal transport over long distances for internet, voice, and video services.

---

Advantages

• High Signal Fidelity
  Ensures excellent linearity and low noise performance, preserving signal quality over extended distances.

• Easy Installation & Maintenance
  Plug-and-play design with LED indicators simplifies deployment and ongoing monitoring.

• Cost-Effective
  Combines advanced performance with competitive pricing, reducing the total cost of ownership.

• Reliable Operation
  Designed for continuous 24/7 operation in various environmental conditions, including heat and humidity.

• Long Lifespan
  Built with high-quality components and thermal protection systems to ensure durability and longevity.

---

Technical Specifications (Typical)

• RF Input Frequency: 47 – 862 MHz

• RF Input Level: 75 – 85 dBµV

• Optical Output Power: 3 – 10 dBm (configurable)

• Wavelength Options: 1310 nm / 1550 nm / CWDM

• Return Loss: ≥16 dB

• Connector Type: SC/APC or FC/APC

• Power Supply: DC 12V / 1A

• Dimensions: Approx. 120mm x 80mm x 25mm

• Operating Temperature: -20°C to +55°C

---

Conclusion

The Comtech Mini Transmitter stands out as a compact, cost-effective, and high-performance optical transmitter for today’s demanding network environments. Whether you’re deploying a new FTTH solution, expanding your CATV network, or upgrading an HFC infrastructure, this transmitter delivers consistent, high-quality performance in a miniaturized package. Built for reliability, designed for efficiency, and priced competitively—this device is the smart choice for your optical transmission needs.
