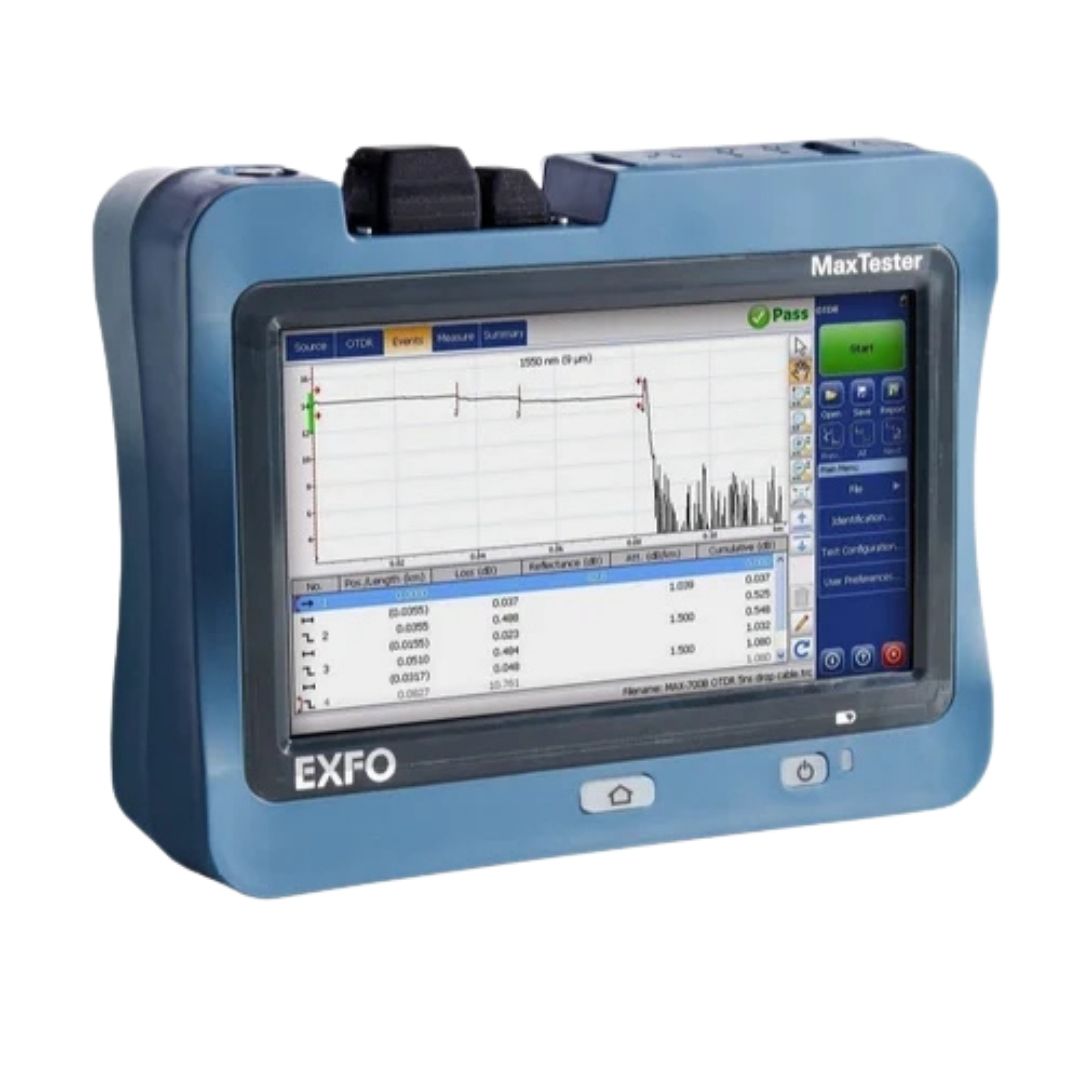

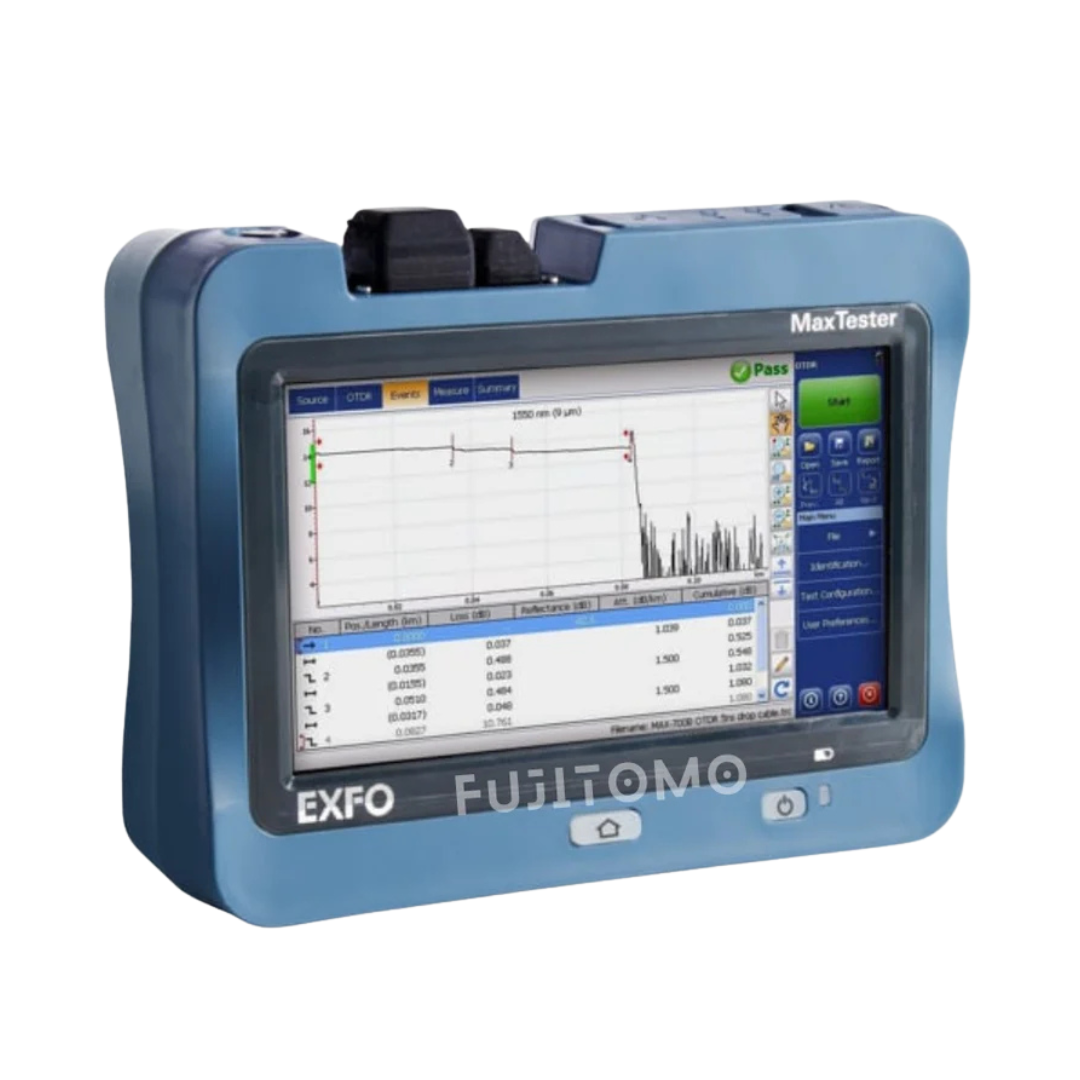

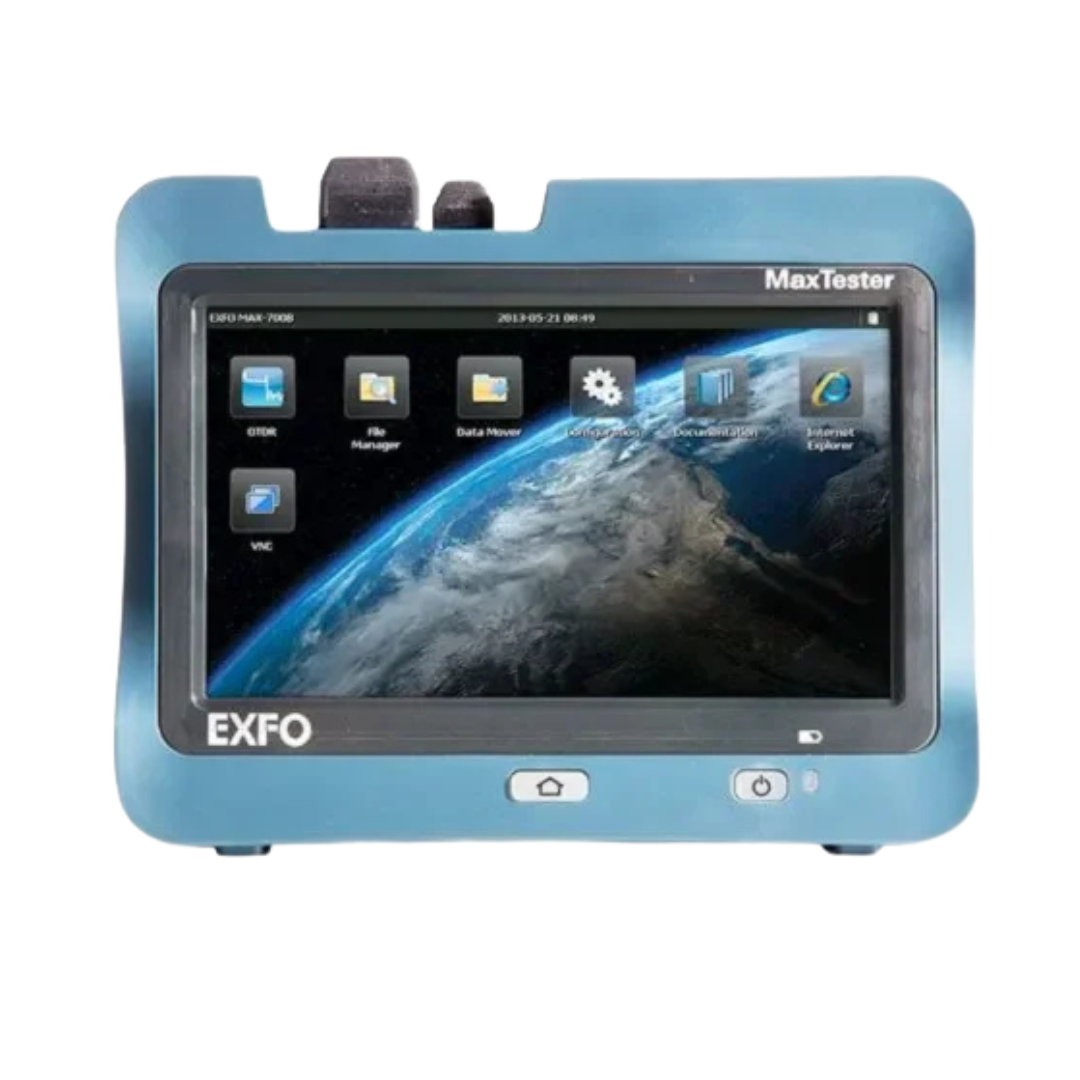

EXFO 720C OTDR: A Revolutionary Tool for Optical Network Testing
The Exfo 720 C Otdr (Optical Time Domain Reflectometer) is a powerful and advanced device designed for optical fiber testing. As a part of EXFO’s renowned line of fiber-optic testing solutions, the 720C OTDR is crafted to provide superior accuracy, speed, and reliability in testing, optimizing the performance and longevity of fiber optic networks. Its high-performance features and versatile applications make it an indispensable tool for professionals in network installation, maintenance, and troubleshooting.
Key Features of EXFO 720C OTDR
1. High-Performance Testing
The EXFO 720C OTDR delivers precise and reliable results with its advanced optical testing technology. It allows users to perform fast and accurate measurements of fiber optic networks, including detailed analysis of faults, breaks, and fiber losses. This advanced OTDR is capable of performing tests across both short and long fiber links, making it highly versatile and adaptable for various network configurations and sizes.
The device supports multi-wavelength testing, offering measurements on various fiber types, including single-mode and multimode fibers, making it a reliable solution for a wide range of applications.
2. Smart and User-Friendly Interface
The 720C OTDR is equipped with a user-friendly interface that ensures ease of operation, even for technicians with limited experience in OTDR testing. The device comes with a high-resolution touchscreen display, allowing users to view real-time results, test parameters, and graphical representations of fiber links with clarity.
One of the standout features of the EXFO 720C is its automatic test setup, which eliminates the need for complex manual configurations. This smart functionality optimizes the device’s settings based on the type of fiber being tested, ensuring quick and accurate results. The automatic fault detection and analysis features allow users to easily identify and troubleshoot issues in fiber optic networks, reducing the potential for human error.
3. Multi-Wavelength Capability
The 720C OTDR supports multi-wavelength testing, which enhances its capability to test fiber networks under various conditions. With the ability to test at multiple wavelengths, technicians can gain a comprehensive understanding of fiber performance and accurately identify faults, even in complex multi-wavelength networks. This flexibility makes it ideal for service providers who need to test diverse network configurations.
This multi-wavelength testing capability is particularly beneficial for modern networks, which often utilize multiple wavelengths for enhanced bandwidth and data transmission efficiency. The EXFO 720C OTDR is designed to provide precise measurements across these various wavelengths, ensuring optimal performance and minimizing potential issues.
4. Compact and Durable Design
The EXFO 720C OTDR is designed to be both portable and durable, making it ideal for field use. Its compact, lightweight design ensures that technicians can carry it easily to various test sites, and the rugged build ensures that the device can withstand harsh conditions. The 720C is equipped with a protective housing that can handle shock, dust, and moisture, making it suitable for use in diverse environments, from outdoor installations to industrial settings.
Additionally, the device is designed to provide long battery life, ensuring that technicians can complete testing without worrying about running out of power during crucial fieldwork.
5. Real-Time Analysis and Detailed Reporting
The EXFO 720C OTDR offers real-time analysis during testing, which allows users to immediately detect and identify issues. This feature is particularly useful for reducing downtime and ensuring that fiber networks are up and running as quickly as possible. The OTDR’s ability to detect faults in real-time helps users take immediate corrective actions, whether it’s splicing, repairing, or optimizing the fiber network.
The device also provides detailed reports that include essential data such as insertion loss, return loss, and fault location, as well as graphical representations of fiber link performance. These reports can be saved in various formats, including PDF and CSV, and easily shared with team members or clients for documentation and further analysis.
6. Remote Monitoring and Cloud Integration
The EXFO 720C OTDR offers remote monitoring capabilities, which allow engineers and technicians to manage testing and monitor results from a distance. This feature is especially valuable for large-scale network projects where multiple technicians might be working in different locations. Through cloud integration, test results can be accessed and analyzed in real time, allowing for better collaboration and faster decision-making.
Remote access also reduces the need for on-site presence, which can be cost-effective and efficient for large or widespread fiber networks.
Applications of the EXFO 720C OTDR
1. Fiber Network Installation
The EXFO 720C OTDR plays a critical role in the installation of new fiber optic networks. During the installation process, it is essential to verify that the fiber links are properly installed and free from faults. The 720C OTDR allows technicians to perform thorough tests on the newly laid fiber, ensuring that it meets the required standards and is functioning optimally.
With its ability to perform rapid and accurate testing, the 720C minimizes the risk of installation errors, reducing the chances of future network issues. By ensuring a smooth and error-free installation, service providers and contractors can deliver high-quality, reliable fiber networks to their clients.
2. Fiber Network Maintenance
Maintaining fiber optic networks is crucial to ensure that they continue to operate at peak performance levels. The EXFO 720C OTDR is an ideal tool for routine maintenance, allowing technicians to regularly test the health of fiber links and detect potential issues before they cause disruptions in service.
With its automated testing features and real-time analysis, the 720C OTDR enables proactive maintenance by identifying faults early, allowing for prompt corrective action to be taken. This helps minimize downtime and service interruptions, ensuring that end-users experience consistent and reliable network performance.
3. Troubleshooting and Fault Location
One of the most important uses of the EXFO 720C OTDR is for troubleshooting fiber optic networks. Fiber networks can encounter various issues such as splicing losses, breaks, or poor connections, which can degrade network performance. The 720C helps technicians quickly identify the root cause of these problems by providing detailed results on fault locations and types.
The 720C OTDR can also be used to locate faults over long distances, saving technicians time and effort when diagnosing complex network issues. With its advanced fault location capabilities, the EXFO 720C ensures that technicians can resolve problems as quickly as possible, restoring the network to full functionality.
4. Service Provider Networks
For service providers managing large fiber optic networks, the EXFO 720C OTDR is an essential tool for ensuring optimal service quality. The device allows service providers to perform thorough testing across various network segments, detecting issues such as power loss, splice loss, and fiber degradation.
The 720C also helps service providers ensure that their networks meet industry standards and comply with regulatory requirements. With its ability to perform high-speed, accurate testing, the EXFO 720C OTDR enables service providers to maintain high levels of service and customer satisfaction.
Conclusion
The EXFO 720C OTDR is a versatile, high-performance testing tool that is essential for professionals working with fiber optic networks. Its combination of advanced testing technology, user-friendly interface, and real-time analysis makes it ideal for a wide range of applications, including fiber network installation, maintenance, troubleshooting, and service provider networks. Whether you are an installer, technician, or service provider, the EXFO 720C OTDR provides the accuracy, reliability, and efficiency needed to ensure optimal fiber network performance. With its robust features and exceptional capabilities, the EXFO 720C OTDR is a must-have tool for any fiber optic professional.
