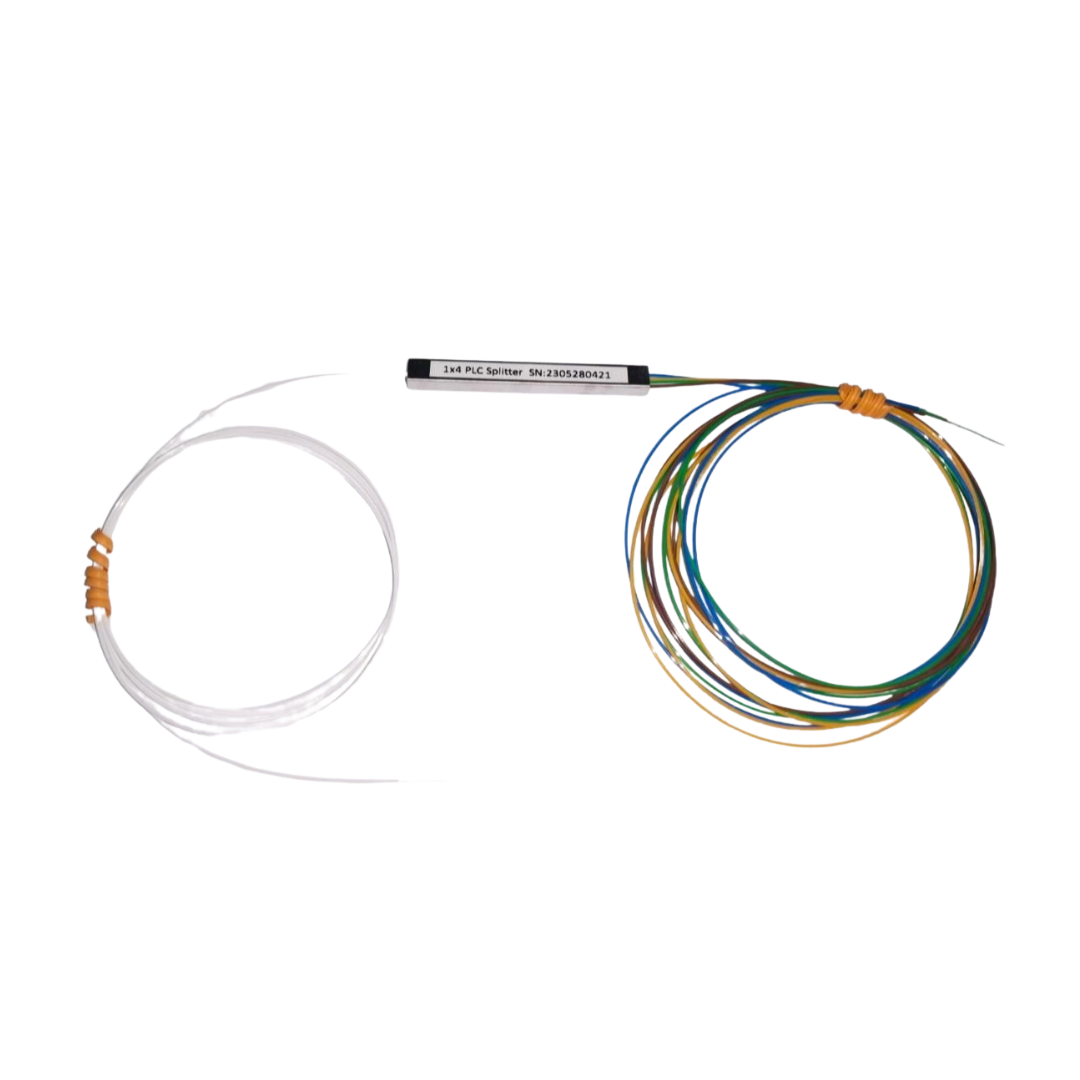

FOBER PLC SPLITTER 1 X 4 WITHOUT CONNECTOR

FOBER PLC SPLITTER 1 X 4 WITHOUT CONNECTOR – is a high-quality optical splitter designed to efficiently divide optical signals in fiber-optic networks. It features a 1×4 configuration, providing one input and four output ports, allowing for multiple signal distribution. Ideal for use in Passive Optical Networks (PON) and other fiber-optic applications, it supports high-bandwidth communication with low insertion loss. Made with durable and reliable materials, this splitter ensures long-term performance. The absence of connectors offers flexibility for custom installations, making it a versatile and cost-effective solution for various network setups.

Description

FOBER PLC Splitter 1×4 Without Connector

Reliable Optical Signal Distribution for PON and FTTH Networks

The FOBER PLC SPLITTER 1 X 4 WITHOUT CONNECTOR is a high-performance passive optical component designed to divide a single optical input into four output signals. Engineered with Planar Lightwave Circuit (PLC) technology, this device delivers low insertion loss, excellent uniformity, and high reliability, making it an ideal solution for Fiber to the Home (FTTH) and Passive Optical Networks (PON).

Without pre-installed connectors, this version provides bare fiber ends, giving engineers and technicians the freedom to splice or terminate it with the connectors of their choice. Its compact size and robust construction allow for flexible installation in various environments, including network cabinets, outdoor enclosures, and data centers.

Key Features

1×4 Configuration (No Connector)Efficiently splits one optical input into four outputs, perfect for small to mid-size PON and FTTH network deployments.
Bare Fiber Ends
Offers installation flexibility by enabling custom fusion splicing based on specific network needs.
PLC Technology
Ensures uniform light distribution with excellent optical characteristics, including low insertion and excess loss.
Compact and Lightweight Design
Easy to install in tight spaces, fiber distribution boxes, or wall-mount enclosures.
Highly Durable and Reliable
Built to withstand varying environmental conditions with a wide operating temperature range.

Technical Specifications

Specification	Details
Split Ratio	1 Input : 4 Outputs
Fiber Type	Single Mode (ITU-T G.657A1 / G.652D)
Operating Wavelength	1260 – 1650 nm
Insertion Loss (Typical)	≤ 7.2 dB
Return Loss	≥ 55 dB
Uniformity	≤ 0.8 dB
Excess Loss	≤ 0.4 dB
Directivity	≥ 55 dB
Connector Type	None (Bare Fiber)
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +85°C
Package Type	Bare Fiber / Steel Tube / ABS Box

Applications

The FOBER PLC Splitter 1×4 Without Connector is perfect for a wide range of fiber optic systems:

FTTH (Fiber to the Home)
PON (Passive Optical Network)
Telecommunication Networks
Data Communication Systems
CATV (Cable TV) Networks
Fiber Sensing & Monitoring Systems

Thanks to its connector-free design, the splitter is ideal for custom installations where field engineers need flexibility in splicing and integration.

Advantages

✅ Customized Installation – Bare fiber design enables field technicians to choose the connector type or directly splice it into the existing fiber layout.
✅ Stable Optical Performance – Offers consistent insertion and return loss values for long-term signal integrity.
✅ Compact & Versatile – Suitable for high-density environments where space is at a premium.
✅ Cost-Efficient Deployment – Saves costs in pre-terminated connectors while offering greater control.
✅ Environmentally Resilient – Performs reliably in both indoor and outdoor installations, even under extreme conditions.

Why Choose FOBER PLC Splitter 1×4 Without Connector?

FOBER is a leading name in fiber optic infrastructure components. Its 1×4 PLC Splitter without connector is a result of rigorous engineering and quality assurance, designed to meet the increasing demands of modern network deployments.

This splitter is the go-to solution for PON engineers, telecom service providers, and fiber network installers who prioritize performance, flexibility, and durability. The absence of connectors allows complete freedom over installation, enabling seamless fusion splicing for stronger and more stable connections.

From backbone networks to end-user FTTH access points, the FOBER 1×4 PLC splitter supports stable signal transmission, enhancing overall network efficiency and minimizing signal degradation across multiple connections.

Conclusion

The FOBER PLC Splitter 1×4 Without Connector is a compact, durable, and high-performance device ideal for splitting optical signals in various telecom and broadband applications. With its advanced PLC technology and connector-free design, it provides exceptional value, adaptability, and performance for all types of fiber networks.

Whether you are upgrading an existing optical distribution framework or building a new FTTH network from the ground up, this splitter is a reliable component that delivers on performance and flexibility.

Choose FOBER for innovation, quality, and trust in fiber optic solutions.
