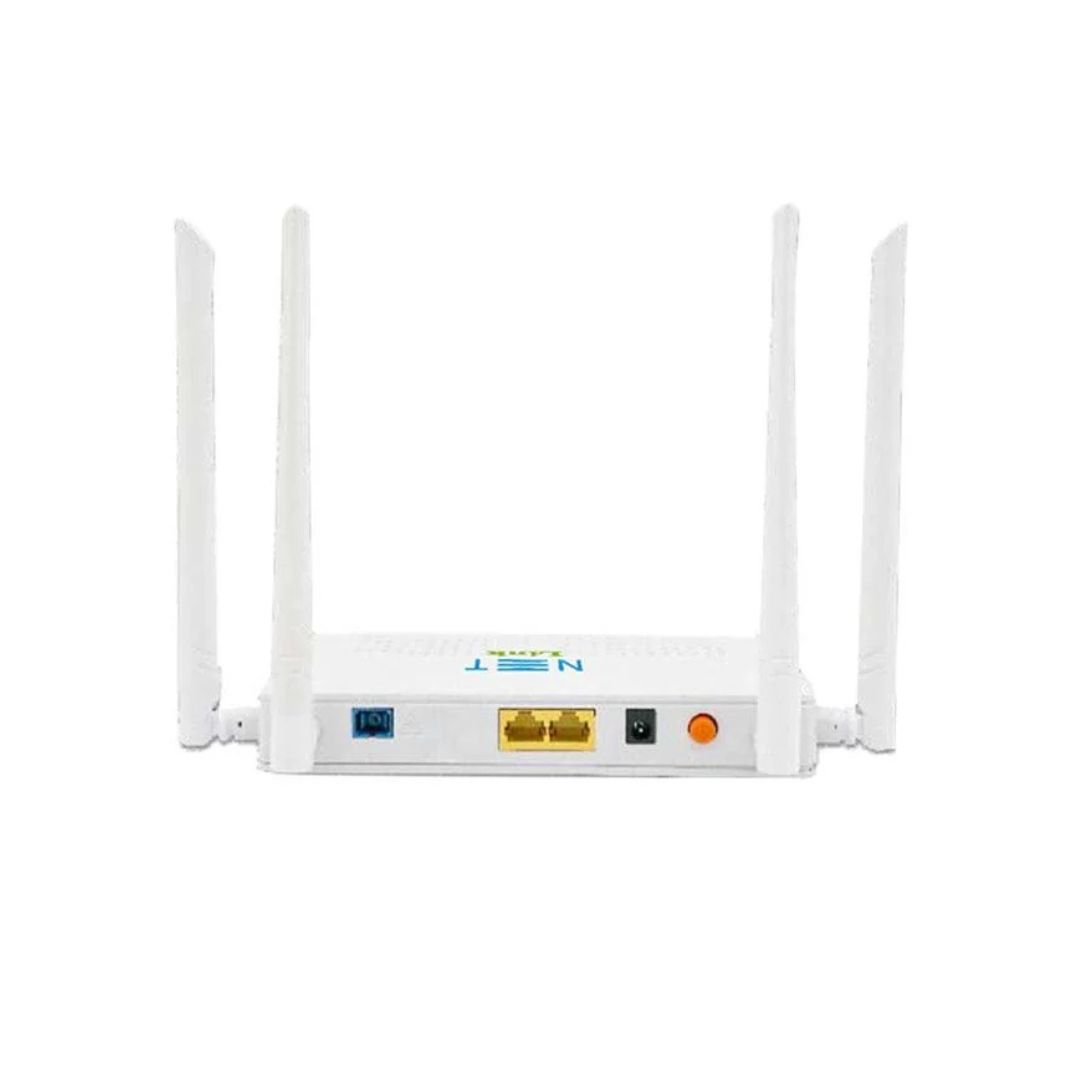

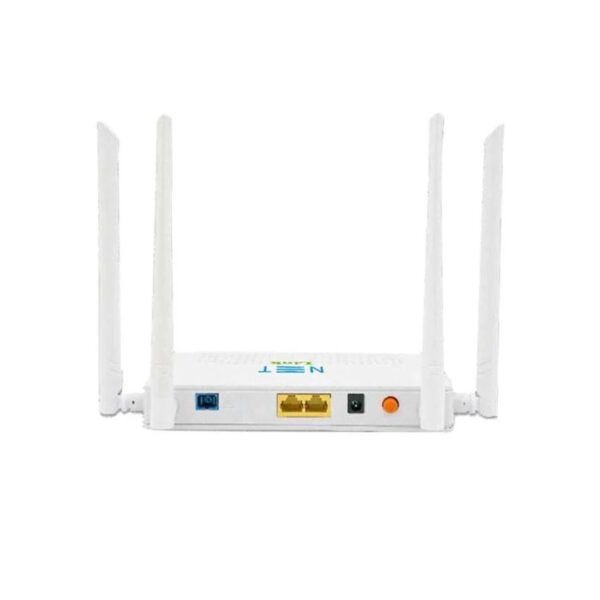

V2802DAC (2GE+WiFi5 XPON ONT)

The V2802DAC is designed to meet the FTTH and triple play service requirements of fixed network operators. The ONT is based on a high-performance chipset (Realtek) technology solution, supporting IEEE 802.11b/g/n/ac WiFi technology and other Layer 2/Layer 3 functions.

The ONT supports the OAM/OMCI protocol, enabling configuration and management of various services on the Netlink OLT.

The ONU is highly reliable and easy to manage and maintain. It offers QoS guarantees for different services and complies with China Telecom CTC2.1/3.0 and international technical standards such as IEEE 802.3ah, ITU-T G.984, etc.

Description

NETLINK GPON ONT (2GE + WiFi 5) V2802DAC – Advanced Dual-Band ONT for Seamless Fiber Connectivity

The GPON ONT 2GE WiFi5 V2802DAC is a high-performance, dual-band Optical Network Terminal specifically designed for FTTH (Fiber to the Home) and FTTP (Fiber to the Premises) solutions. Engineered to deliver robust internet access with blazing speeds and wide coverage, this ONT integrates GPON technology, two Gigabit Ethernet ports, and WiFi 5 support (802.11ac), making it ideal for modern smart homes, small businesses, and multi-device environments.

Whether you’re streaming 4K video, engaging in online gaming, video conferencing, or operating smart IoT devices, this device ensures exceptional performance, reduced latency, and maximum wireless coverage — all within a compact and energy-efficient design.

🔑 Key Features of GPON ONT (2GE + WiFi 5) V2802DAC

⚡ High-Speed GPON Access

Supporting the ITU-T G.984 GPON standard, the V2802DAC ONT delivers reliable gigabit-class broadband with 2.5 Gbps downstream and 1.25 Gbps upstream bandwidth. It provides a stable and high-capacity solution for next-gen high-speed internet needs, suitable for bandwidth-intensive applications like 4K streaming, cloud computing, and online collaboration.

🌐 Dual Gigabit Ethernet Ports (2GE)

Equipped with 2x Gigabit Ethernet (10/100/1000 Mbps) ports, this ONT allows direct connection of desktop computers, smart TVs, gaming consoles, or IP phones with full-speed wired access. Ideal for users who prefer a stable, wired internet experience with no compromises on speed or connectivity.

📶 Dual-Band WiFi 5 (802.11ac)

The standout feature of the V2802DAC is its support for WiFi 5 (802.11ac) with dual-band 2.4GHz and 5GHz wireless transmission. This ensures:

Higher speeds (up to 1167 Mbps) for seamless streaming and downloading.
Better range and penetration for smart homes.
Reduced interference for smoother performance in dense network environments.
Simultaneous device support without signal degradation.

🔒 Advanced Security and User Access Control

Security features include WPA/WPA2 encryption, MAC address filtering, and SSID hiding to safeguard user data. Additionally, parental control settings, firewall functions, and WiFi scheduling provide advanced user-level access control.

🛠️ Efficient Management and Maintenance

The ONT supports remote and local management via TR-069, OMCI, and Web UI, making it easy for ISPs and users to configure, monitor, and update the device. Remote diagnostics, firmware upgrades, and configuration backups streamline maintenance and reduce operational costs.

💡 Elegant Design and Energy Efficient

With a compact, fanless, and lightweight design, the ONT is both aesthetically pleasing and practical. It is built for silent operation and energy-efficient performance, making it suitable for both home and office environments.

📋 Technical Specifications

Feature	Details
GPON Interface	1 x SC/UPC, ITU-T G.984 Compliant
Ethernet Ports	2 x 10/100/1000 Mbps GE Ports
WiFi	Dual Band (2.4GHz + 5GHz), IEEE 802.11ac (WiFi 5)
Wireless Speed	Up to 300 Mbps (2.4GHz), Up to 867 Mbps (5GHz)
Management Protocols	TR-069, OMCI, Web GUI
Security Features	WPA/WPA2, MAC Filtering, Firewall, SSID Control
Power Supply	12V DC, ≤10W Power Consumption
Operating Temp.	0°C to +50°C
Dimensions	Compact desktop design

🎯 Ideal Applications

Smart Homes: Effortlessly handles multiple streaming and smart devices.
SOHO Environments: Provides a stable and fast network for small office operations.
ISP Rollouts: Ideal for GPON-based broadband deployments with WiFi support.

🌟 Advantages at a Glance

Dual-band WiFi 5 for ultra-fast wireless performance.
2x Gigabit Ethernet ports for high-speed wired connections.
GPON uplink supports triple-play services: data, voice (VoIP-ready), and IPTV.
Secure, energy-efficient, and compact for modern living and business use.
Remote management via TR-069, OMCI, and web interface.

✅ Conclusion

The NETLINK GPON ONT (2GE + WiFi 5) V2802DAC is a smart, powerful, and compact ONT designed to meet the demands of modern high-speed broadband environments. With its blazing dual-band WiFi 5, dual Gigabit Ethernet ports, and GPON architecture, it offers exceptional connectivity, security, and scalability. This device is perfect for ISPs offering FTTH solutions and for users seeking a robust networking experience at home or work.
