MINI FTTH FILTER NODE 2000 SM

MINI FTTH FILTER NODE 2000 SF

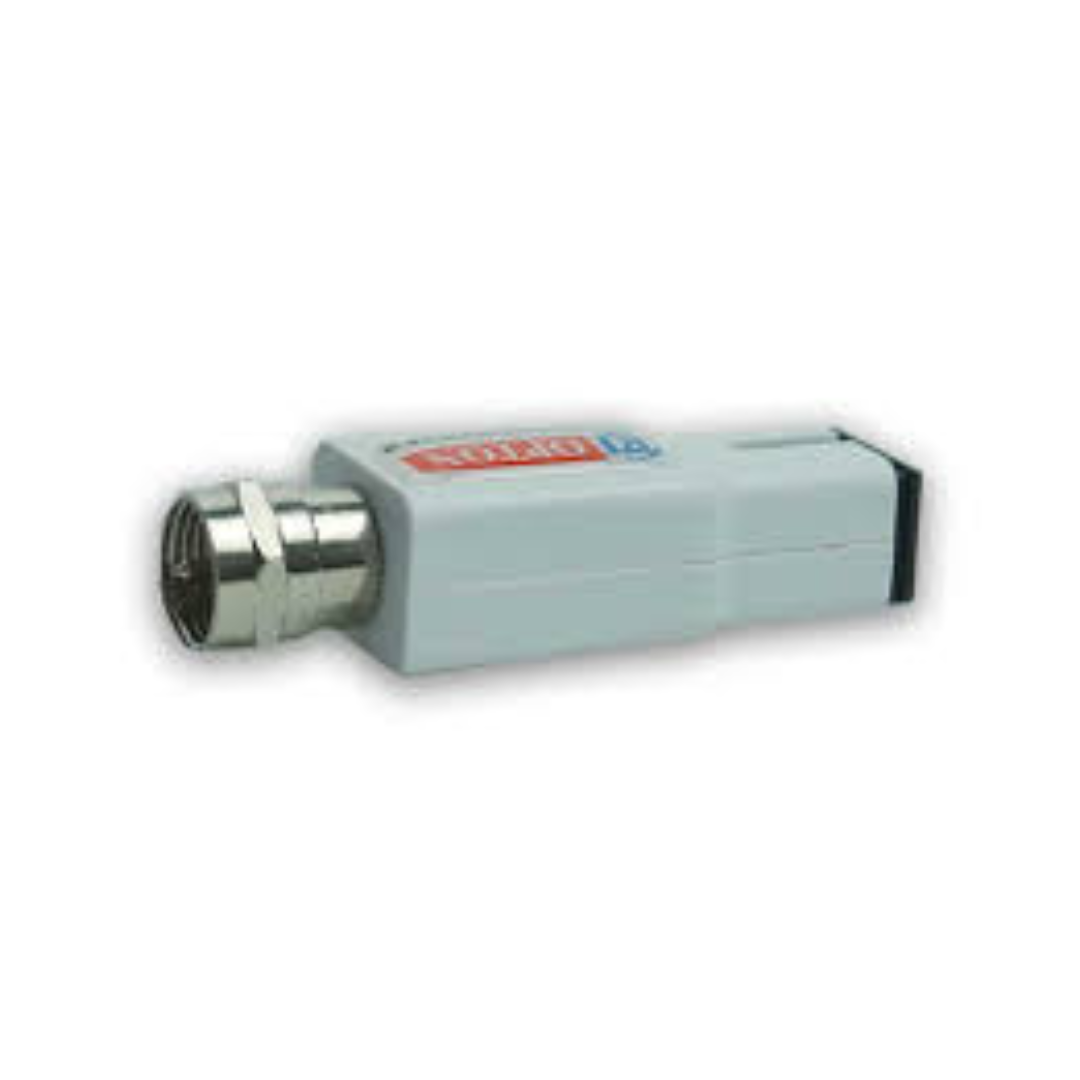

The MINI FTTH FILTER NODE 2000 SF by Netlink is a compact optical receiver designed for Fiber-to-the-Home (FTTH) applications.

It features a built-in filter for enhanced signal quality, operates within a wide optical input range, and offers low power consumption.

Ideal for delivering high-quality CATV and internet services.

Description

Mini FTTH Filter Node 2000 SM – Compact Optical Receiver for Last-Mile FTTH Networks

The Mini FTTH Filter Node 2000 SM is an ultra-compact, high-performance optical receiver designed to meet the demands of modern Fiber to the Home (FTTH) and Fiber to the Building (FTTB) networks. Engineered for last-mile signal reception, this filter node is ideal for converting optical signals into high-quality RF signals for CATV, internet, and multimedia services directly at the subscriber’s location.

With its small form factor, reliable performance, and robust signal processing, the 2000 SM Filter Node offers a cost-effective and efficient solution for telecom operators, ISPs, and MSOs (Multi-System Operators) seeking to enhance service quality at the endpoint.

Compact Design, Powerful Performance

The Mini FTTH Filter Node 2000 SM features a compact and lightweight design, making it perfect for installation in limited spaces such as wall-mounted enclosures, MDU closets, or residential units. Despite its small size, it offers powerful RF output, low noise, and excellent signal stability, ensuring uninterrupted service delivery.

Its plug-and-play nature simplifies installation, requiring minimal setup and configuration. This ease of use reduces technician workload and installation time, especially in mass deployment scenarios.

Advanced Optical Reception

The 2000 SM Filter Node is equipped with a high-sensitivity optical receiver that can operate over a wide optical input range. It supports a wavelength range of 1290–1600nm, making it compatible with most GPON/EPON and CATV systems.

With a typical optical input range of -8dBm to 0dBm, the receiver ensures clean, distortion-free signal conversion, even under varying optical power levels. The device also features automatic gain control (AGC), which stabilizes RF output across fluctuating input conditions, delivering consistent performance without the need for manual adjustment.

High-Quality RF Output

The Mini FTTH Filter Node delivers RF output levels up to 75dBμV, suitable for direct connection to home distribution systems or in-building coaxial networks. It supports PAL, NTSC, and DVB-C video formats, ensuring compatibility with global television standards.

Its excellent linearity and low distortion make it ideal for applications such as digital TV broadcasting, IPTV, analog video services, and broadband internet transmission over RF.

Integrated Filtering and Low Noise

As the name suggests, the 2000 SM includes built-in RF filtering, which helps eliminate unwanted noise and out-of-band signals. This enhances the clarity of video and internet services delivered to end-users.

The integrated low-noise amplifier (LNA) boosts the signal without introducing significant noise, maintaining a high CNR (Carrier-to-Noise Ratio) and MER (Modulation Error Ratio) for optimal signal quality.

Rugged, Reliable, and Energy-Efficient

The Mini FTTH Filter Node 2000 SM is designed for long-term operation with minimal maintenance. Its rugged aluminum housing provides EMI shielding and excellent heat dissipation, ensuring stable performance even in challenging environments.

Key operational features include:

Low power consumption for energy-efficient performance
LED indicators for power and optical signal status
Wall-mount or DIN-rail mounting support
Surge protection to prevent damage from voltage spikes

Key Features:

Compact design for flexible installation
Wide optical input range (-8dBm to 0dBm)
RF output up to 75dBμV with low noise
Built-in filtering and AGC for signal stability
Compatible with CATV, DVB-C, analog and digital video formats
Low power consumption and LED status indicators
Ideal for FTTH, FTTB, MDU, and last-mile deployments

Ideal Applications:

FTTH and FTTB networks for residential and commercial buildings
Last-mile CATV signal reception
Digital and analog TV signal conversion
MDU (Multi-Dwelling Unit) broadband solutions
Private cable networks and community entertainment systems

Conclusion:

The Mini FTTH Filter Node 2000 SM is a powerful, compact solution for delivering high-quality RF signals at the edge of fiber networks. Whether you’re deploying broadband to a single home or an entire apartment complex, this device offers unmatched efficiency, simplicity, and reliability. With its integrated filtering, low noise, and automatic gain control, the 2000 SM ensures that your customers receive crisp video and high-speed internet, every time.
