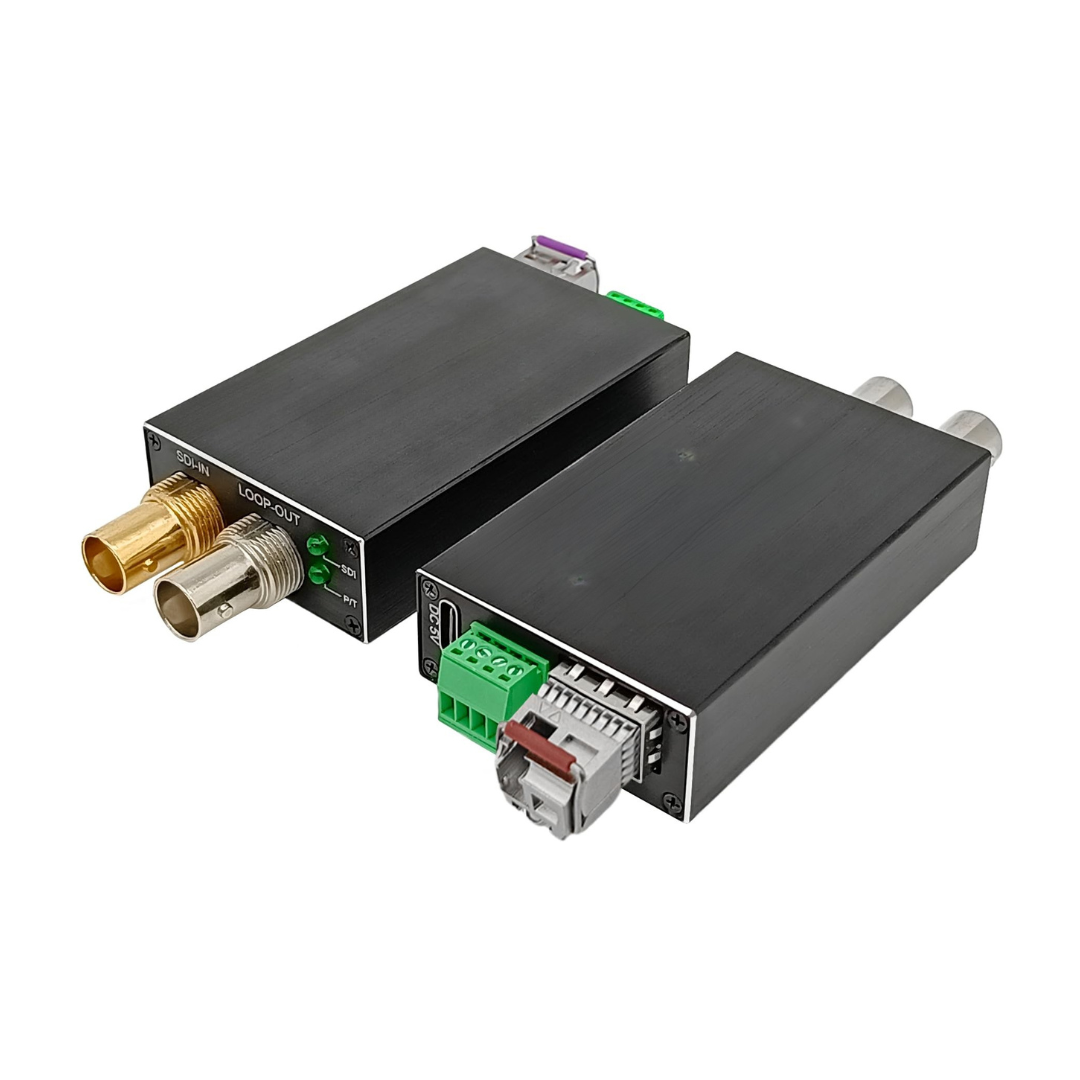

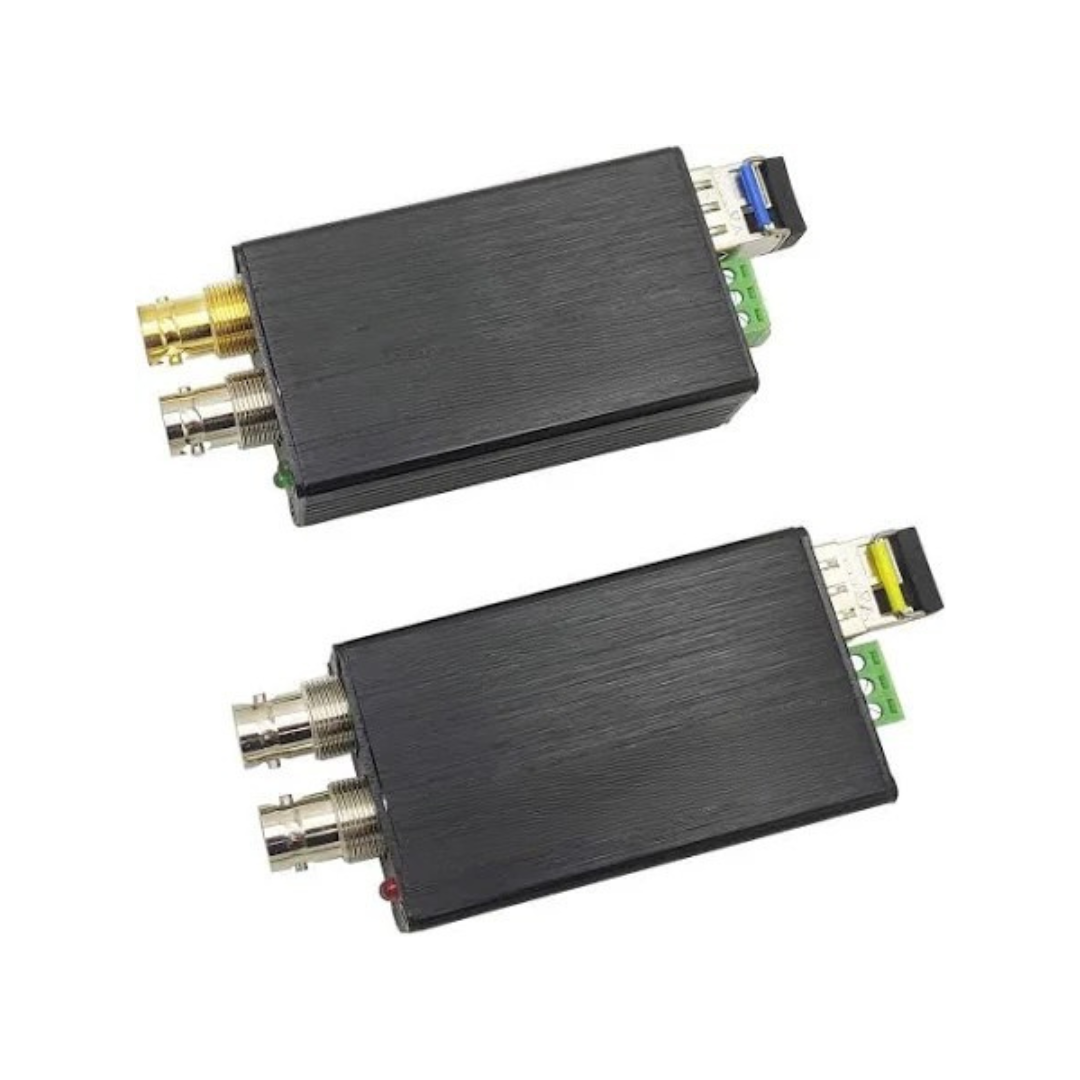

SDI Video to Fiber Optic Converter 3G (1080P)

SDI Video to Fiber Optic Converter 3G (1080P) Specifications –

Product Specifications –

Model Name/Number SDI Video to Fiber Optic Converter 3G (1080P)
Brand SKY BIRDS INTERNATIONAL
Color Black
Material Metal
Number of Ports 1 Port SDI Input, 1 Port SDI Output, 2 Port Loop Out
Number of Channels 1 channel SDI Video
Power 5V 2A
Category:

Description

SDI Video to Fiber Optic Converter 3G (1080P): Uncompressed HD Video Transmission Over Long Distances

The SDI Video to Fiber Optic Converter 3G (1080P) is a high-performance, professional-grade device that allows seamless transmission of high-definition video signals over fiber optic cables. Designed to support 3G-SDI, HD-SDI, and SD-SDI signals, this converter ensures reliable and distortion-free video distribution across extended distances—up to 20 kilometers—without any signal degradation.

Perfect for broadcast studios, post-production houses, outside broadcasting (OB) vans, surveillance systems, and digital signage, the 3G SDI to fiber converter is essential for any setup where video quality and distance are crucial.


Key Features

1. Supports 3G/HD/SD-SDI Formats

This converter is fully compatible with SMPTE 424M (3G-SDI), SMPTE 292M (HD-SDI), and SMPTE 259M (SD-SDI) formats, enabling flexible deployment across various video production and transmission setups. It supports resolutions up to 1080p at 60fps, delivering broadcast-level performance for professional applications.

2. Lossless Fiber Transmission

With advanced optical technology, this converter transmits uncompressed SDI video over single-mode or multi-mode fiber up to 20 km (single-mode). Unlike traditional coaxial cables, fiber optic links ensure zero interference, no electromagnetic noise, and no signal loss, even across long distances.

3. Real-Time Transmission

This unit enables real-time, low-latency SDI video transmission, making it ideal for live event production, news broadcasting, and studio-to-studio connections. It preserves audio, video, and embedded data integrity throughout the transmission path.

4. Embedded Audio Support

The converter supports 8-channel embedded digital audio, making it suitable for transporting broadcast-quality audio and video simultaneously. There’s no need for external audio cabling, simplifying the infrastructure.

5. Plug-and-Play Operation

Installation is simple—no driver or software required. Just plug the SDI signal into the transmitter, connect the fiber link, and retrieve the signal at the receiver. It’s fully plug-and-play, with automatic format detection.

6. LED Indicators

Integrated LED lights provide clear feedback on power status, signal presence, and optical link activity, ensuring easy diagnostics and real-time monitoring.

7. Durable and Compact Design

Housed in a rugged metal enclosure, the converter is built for durability in demanding environments. Its compact form factor allows convenient integration into tight rack spaces, OB vans, or field kits.


Applications

1. Broadcast Studios

Used for linking studios, control rooms, or camera feeds over long distances while maintaining SDI quality. Ideal for live broadcasting and remote camera setups.

2. Outside Broadcasting (OB Vans)

Enables field production teams to send high-definition video back to control rooms over long fiber runs, overcoming limitations of traditional copper cables.

3. Video Surveillance

Perfect for transporting HD video signals from remote surveillance cameras to a central monitoring location without degradation or noise.

4. Post-Production and Editing

Enables high-speed video transfers between editing stations or storage servers across different rooms or floors within a production facility.

5. Digital Signage

Connects video content sources to distant display systems in airports, shopping malls, stadiums, and other public venues.


Technical Specifications

  • Video Formats: 3G-SDI, HD-SDI, SD-SDI

  • Supported Resolutions: 1080p60/50/30/25/24, 1080i, 720p, 576i, 480i

  • Fiber Type: Single-mode or Multi-mode

  • Transmission Distance: Up to 20 km (single-mode), 2 km (multi-mode)

  • Connector Type: SC/FC/ST (customizable)

  • Audio Support: 8-channel embedded digital audio

  • Power Supply: DC 5V/12V

  • Operating Temperature: -10°C to +60°C

  • LED Indicators: Power, Video Signal, Optical Link

  • Build: Metal housing for EMI shielding and rugged durability


Why Choose SDI Video to Fiber Optic Converter 3G (1080P)?

True HD Quality – Uncompressed 1080p video at up to 60fps
Long-Distance, Noise-Free – Fiber optic transmission up to 20 km
Embedded Audio Transmission – No separate audio cable required
Supports Multiple SDI Formats – 3G-SDI, HD-SDI, and SD-SDI
Easy Integration – Plug-and-play functionality with LED diagnostics
Rugged Build for Field or Studio – Ideal for OB vans and live events


Conclusion

The SDI Video to Fiber Optic Converter 3G (1080P) is a robust, reliable solution for professional video transmission across extended distances. It combines cutting-edge fiber optics with broadcast-grade SDI support to meet the highest demands of modern video production, distribution, and broadcasting environments. Whether for studio use, live events, or surveillance, this converter delivers unbeatable performance, stability, and quality.
